Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 20
| Product | Pricing | Datasheet | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

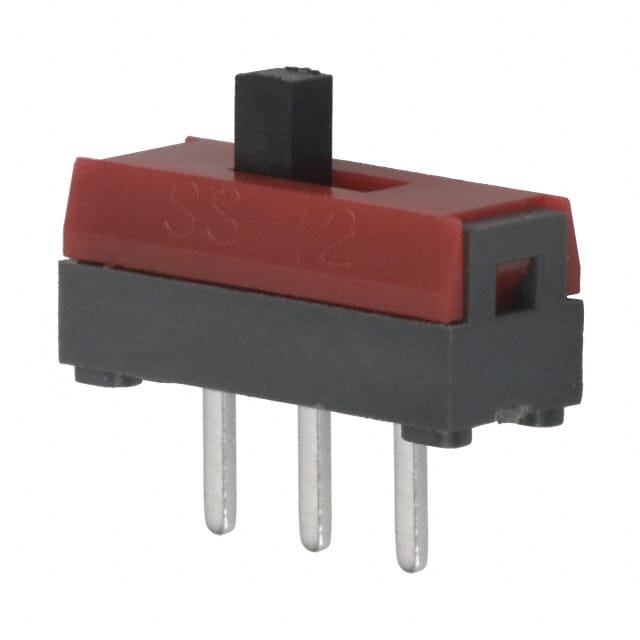

 SS12SDP2 NKK Switches | 1 $8.0000 | Datasheet | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - | -15°C ~ 60°C | 100,000 Cart + RFQ |

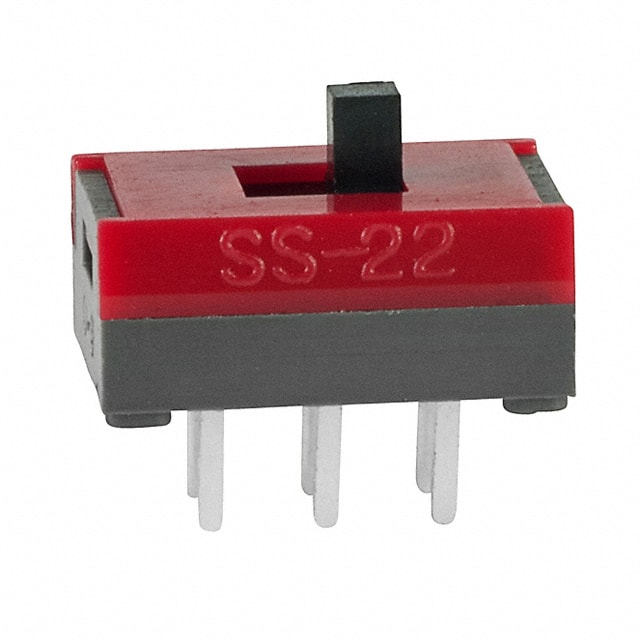

 SS22SDP2 NKK Switches | 1 $2.2200 | Datasheet | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - | -15°C ~ 60°C | 3,919 Cart + RFQ |

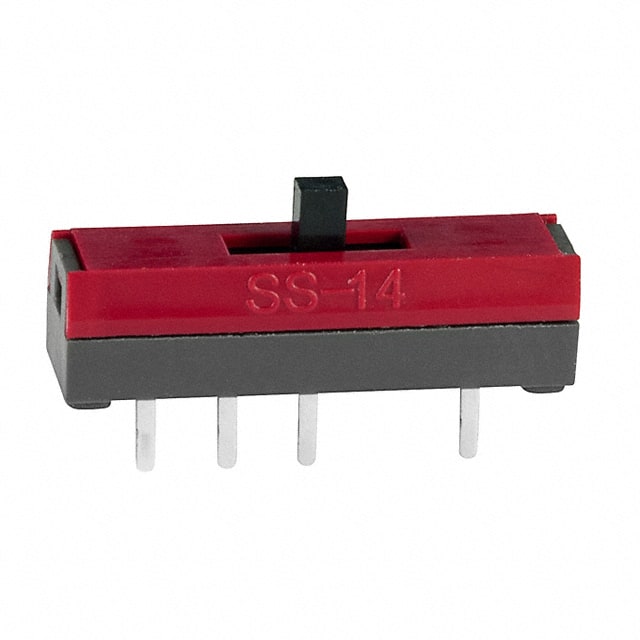

 SS14MDP2 NKK Switches | 1 $0.0508 | Datasheet | SP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - | -15°C ~ 60°C | 100,000 Cart + RFQ |

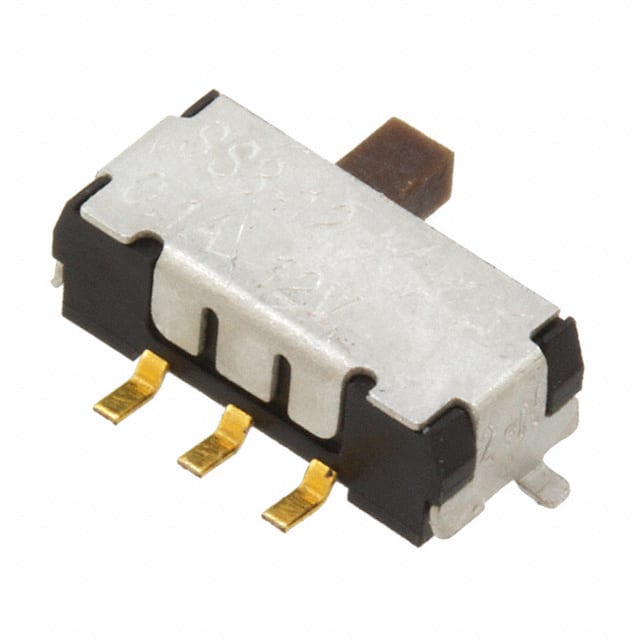

 SS312SAH4-R NKK Switches | 1 $3.7300 | Datasheet | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - | -25°C ~ 85°C | 2,784 Cart + RFQ |

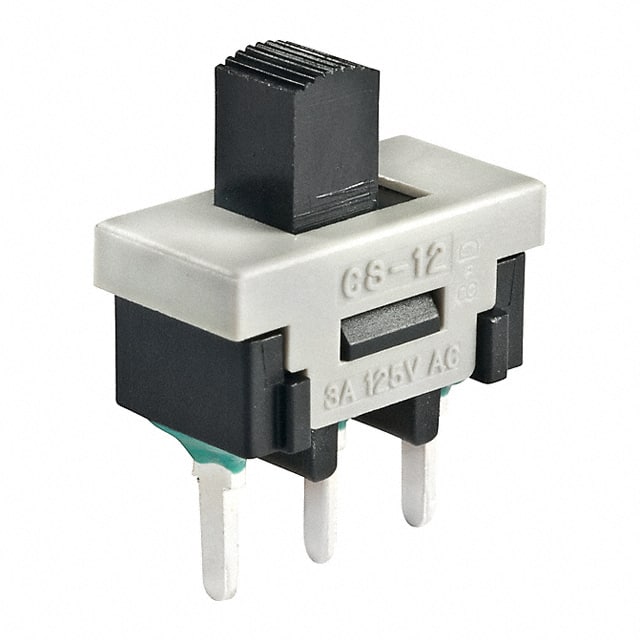

 CS12ANW03 NKK Switches | 1 $2.7200 | Datasheet | SPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 1,796 Cart + RFQ |

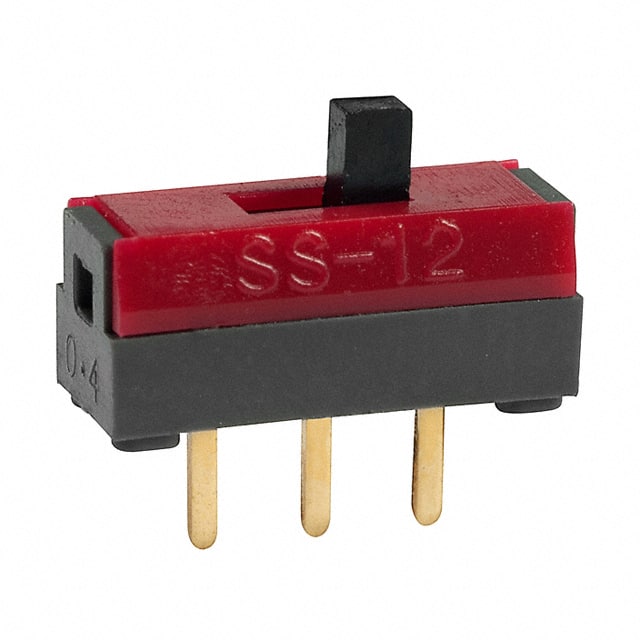

 SS12SDP4 NKK Switches | 1 $8.0000 | Datasheet | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - | -15°C ~ 60°C | 100,000 Cart + RFQ |

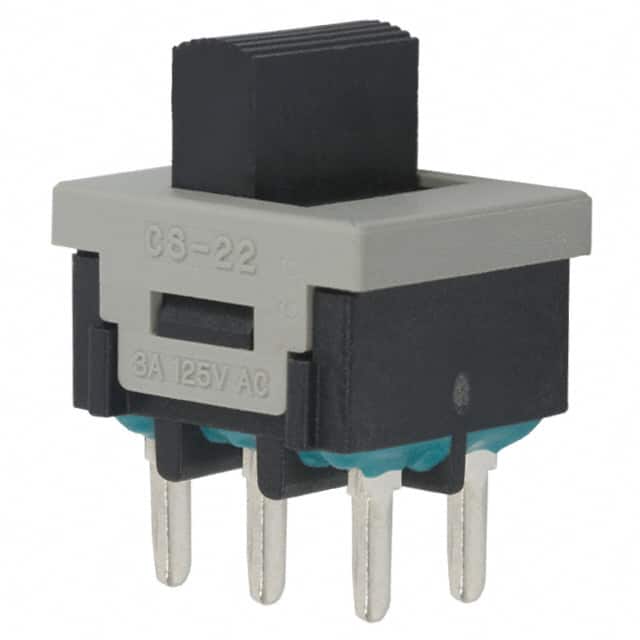

 CS22BNW03 NKK Switches | 1 $3.5400 | Datasheet | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 5,142 Cart + RFQ |

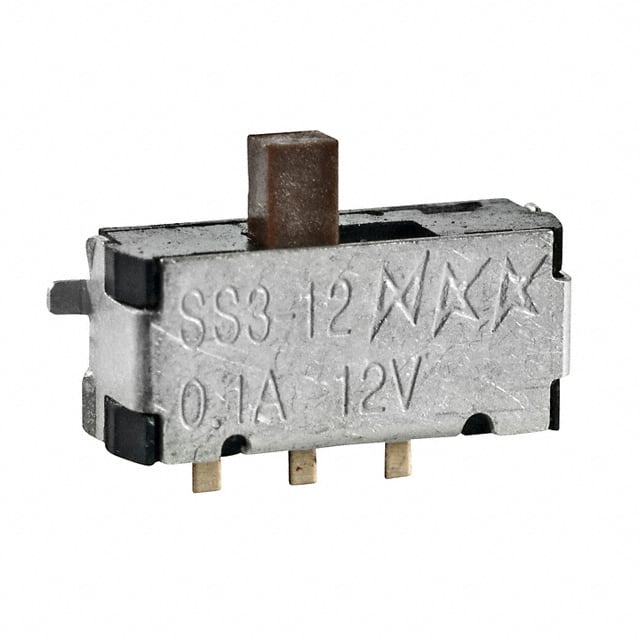

 SS312SAH4 NKK Switches | 1 $3.7300 | Datasheet | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - | -25°C ~ 85°C | 8,750 Cart + RFQ |

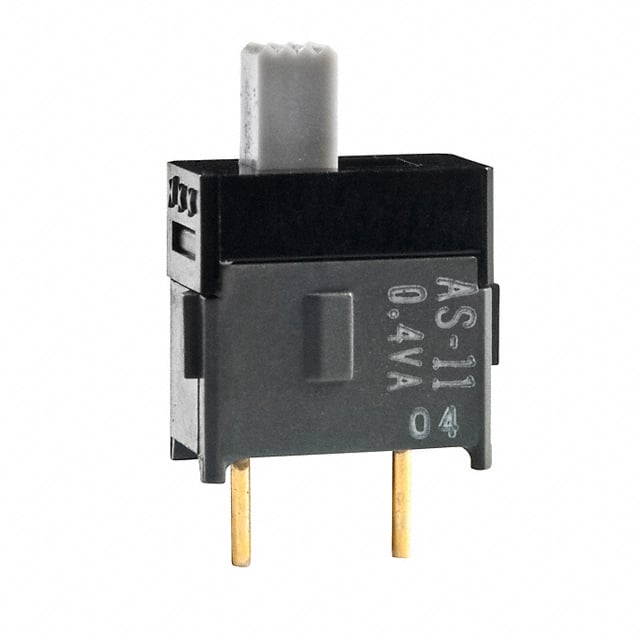

 AS11CP NKK Switches | 1 $4.2200 | Datasheet | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 4,768 Cart + RFQ |

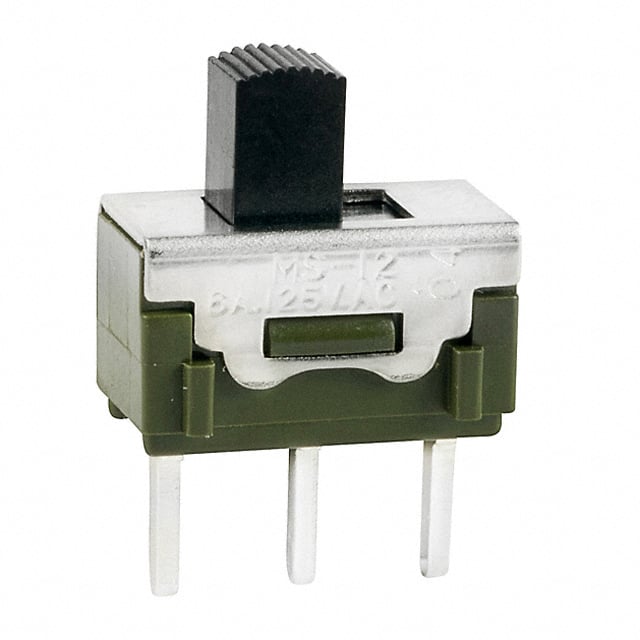

 MS12ANW03 NKK Switches | 1 $4.3600 | Datasheet | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 4,897 Cart + RFQ |

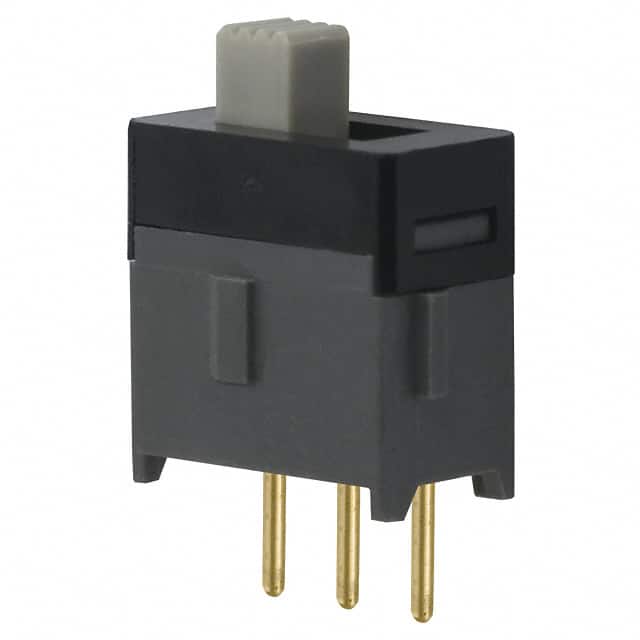

 AS12AP NKK Switches | 1 $4.3600 | Datasheet | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 3,223 Cart + RFQ |

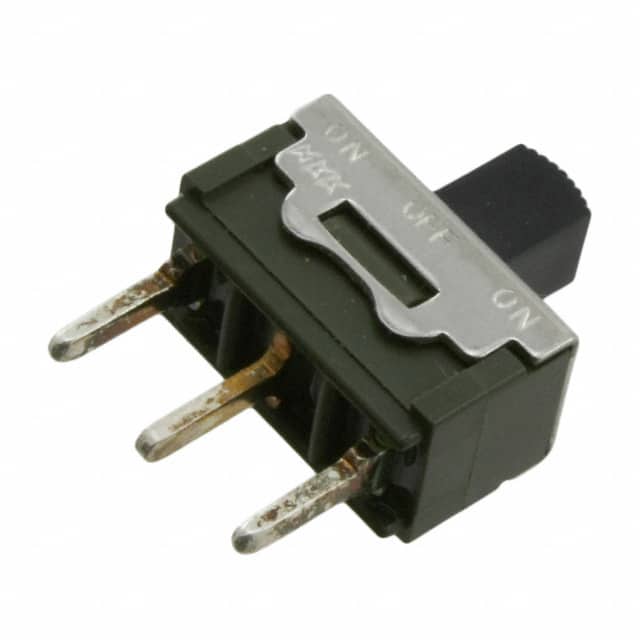

 MS13ANW03 NKK Switches | 1 $4.8000 | Datasheet | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 5,569 Cart + RFQ |

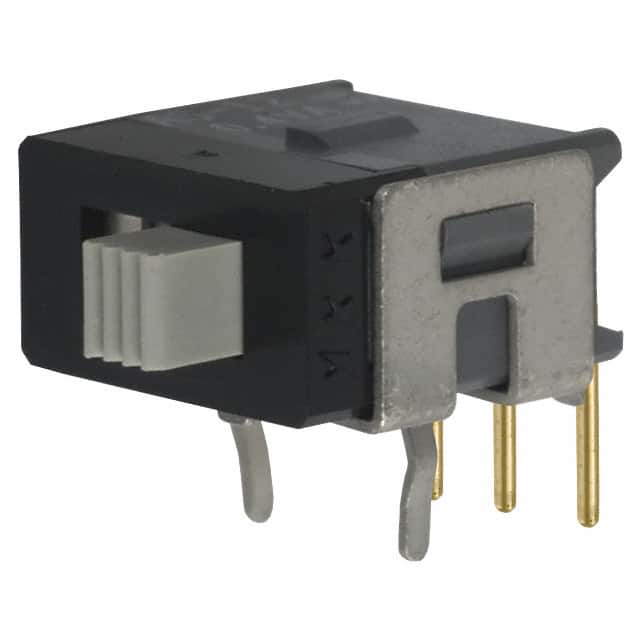

 AS12AH NKK Switches | 1 $5.1100 | Datasheet | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 5,165 Cart + RFQ |

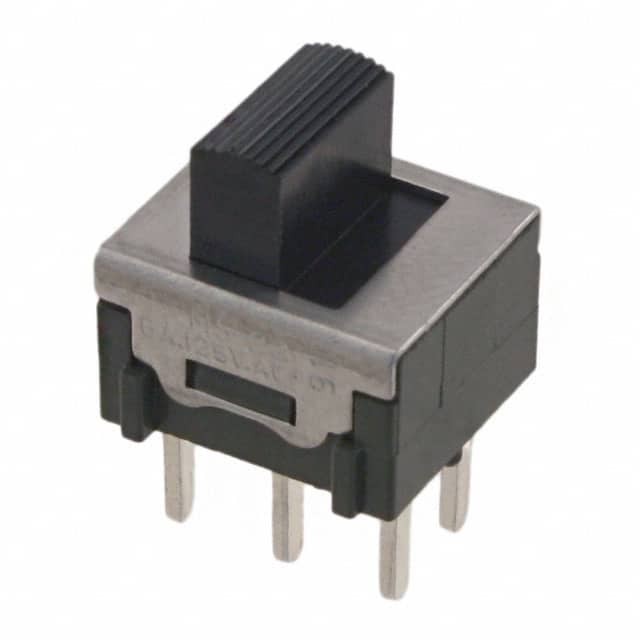

 MS22BNW03 NKK Switches | 1 $5.9900 | Datasheet | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 9,302 Cart + RFQ |

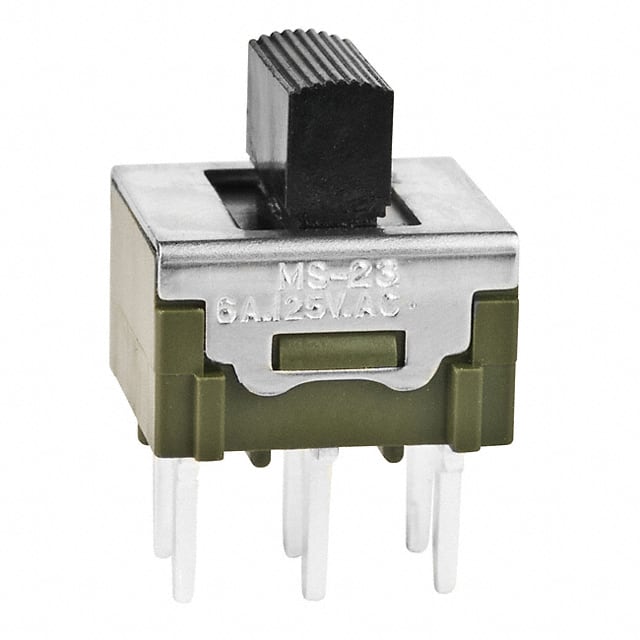

 MS23BNW03 NKK Switches | 1 $6.6400 | Datasheet | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 3,016 Cart + RFQ |

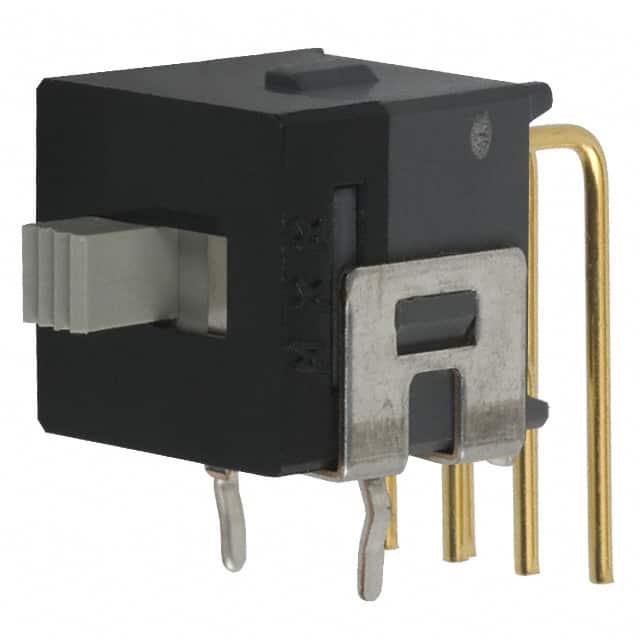

 AS22AH NKK Switches | 1 $6.8300 | Datasheet | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 4,176 Cart + RFQ |

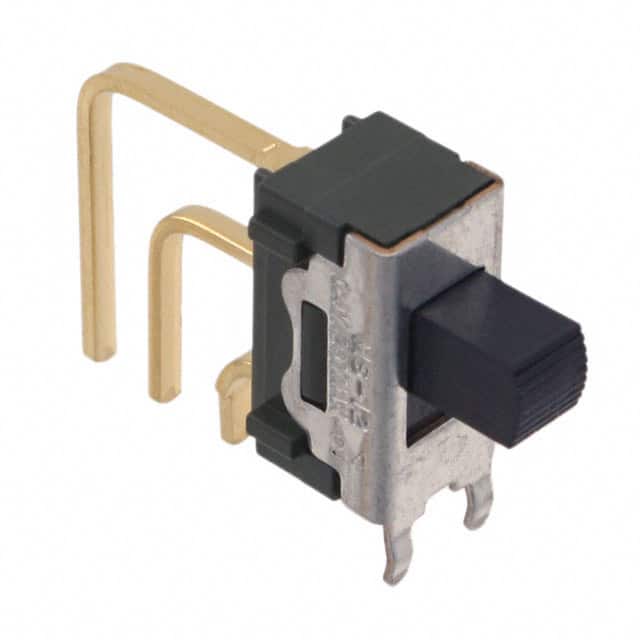

 MS12ASG40 NKK Switches | 1 $6.9300 | Datasheet | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 1,833 Cart + RFQ |

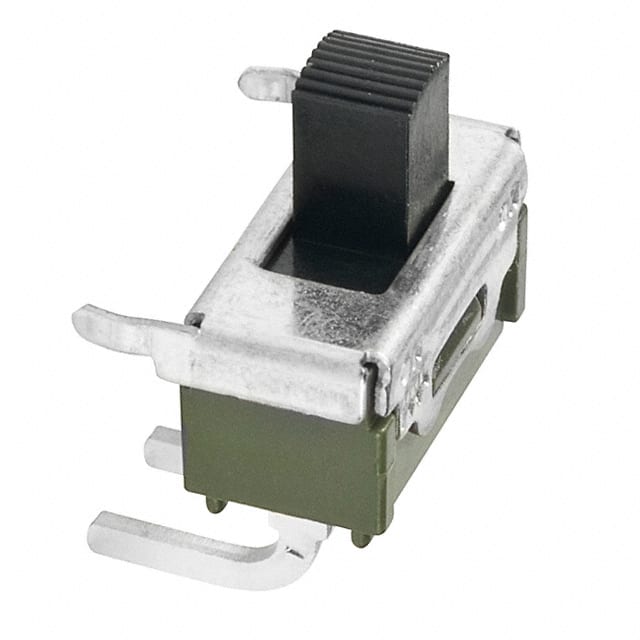

 MS12ASW30 NKK Switches | 1 $7.2000 | Datasheet | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals | -30°C ~ 85°C | 4,636 Cart + RFQ |

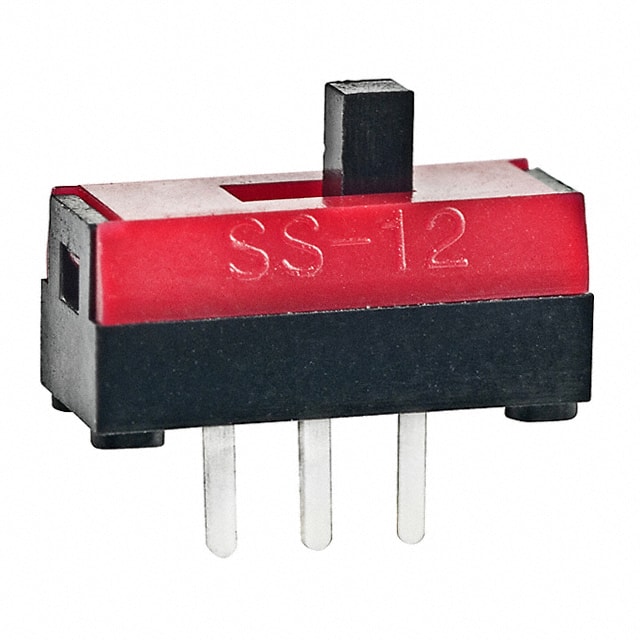

 SS12SBP2 NKK Switches | 1 $8.0000 | Datasheet | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - | -15°C ~ 60°C | 100,000 Cart + RFQ |

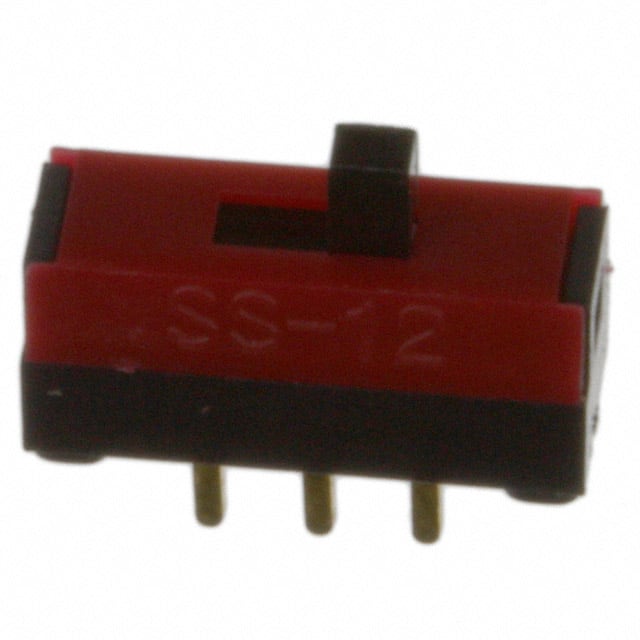

 SS12SBP4 NKK Switches | 1 $8.0000 | Datasheet | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - | -15°C ~ 60°C | 100,000 Cart + RFQ |
