Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 22
| Product | Pricing | Datasheet | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

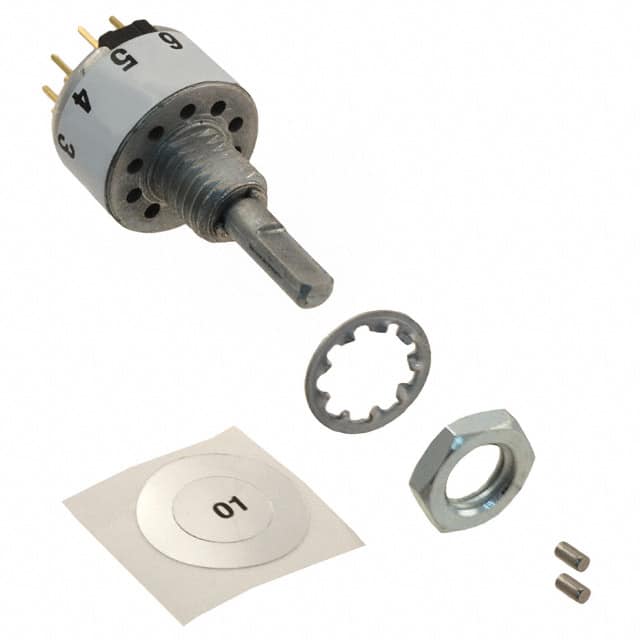

 56DP36-01-1-AJN Grayhill, Inc. | 1 $17.4100 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 6,675 Cart + RFQ |

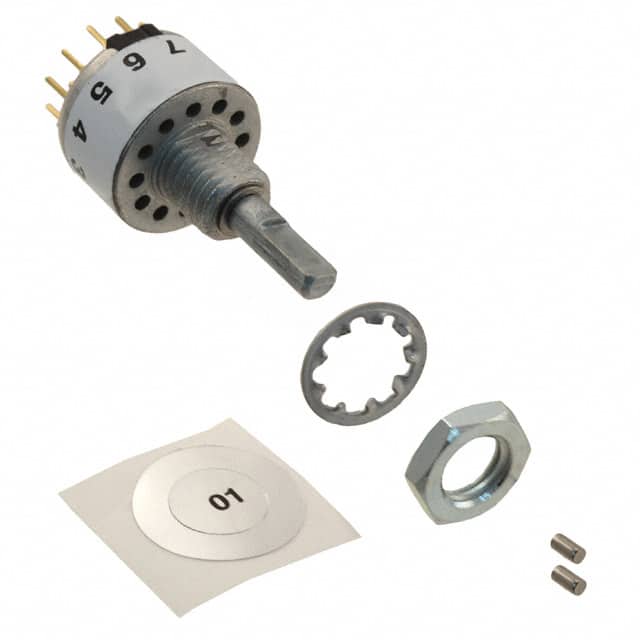

 56DP30-01-1-AJN Grayhill, Inc. | 1 $18.0500 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 5,836 Cart + RFQ |

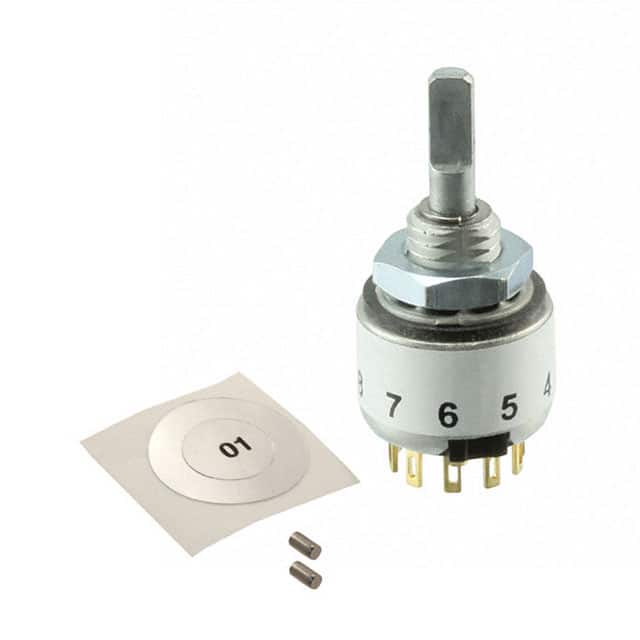

 56SD36-01-1-AJN Grayhill, Inc. | 1 $18.3700 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 8,463 Cart + RFQ |
56DP36-01-2-AJN Grayhill, Inc. | 1 $19.2500 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 3,804 Cart + RFQ |

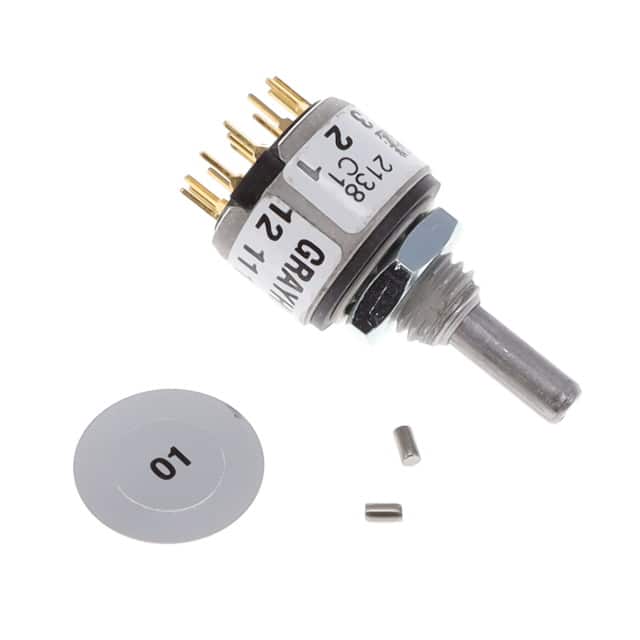

 56SDP30-01-1-AJN Grayhill, Inc. | 1 $19.4100 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 1,085 Cart + RFQ |

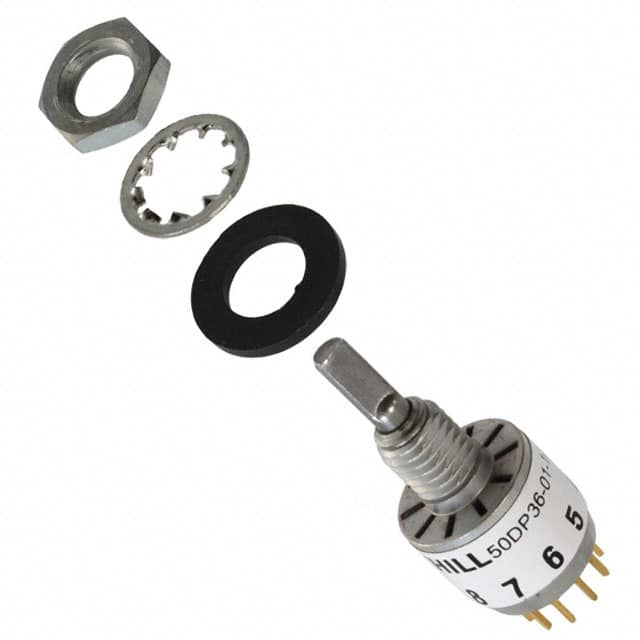

 50DP36-01-1-AJN Grayhill, Inc. | 1 $23.8400 | Datasheet | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 1,982 Cart + RFQ |

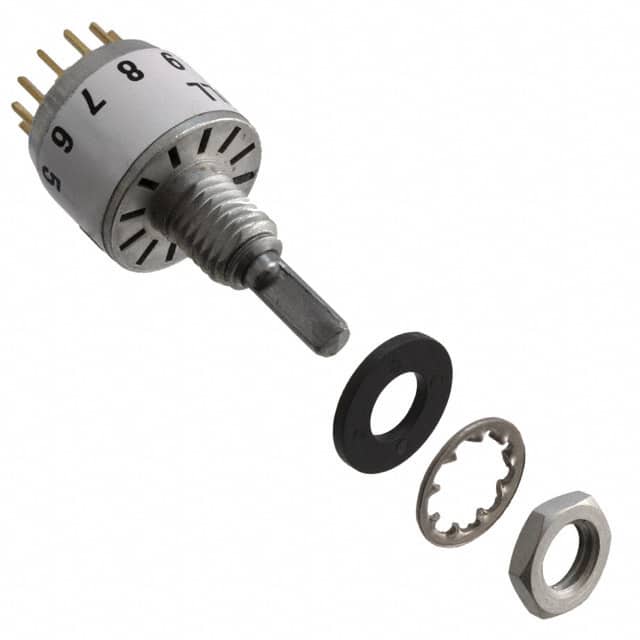

 51DP30-01-1-AJN Grayhill, Inc. | 1 $23.9800 | Datasheet | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 5,629 Cart + RFQ |

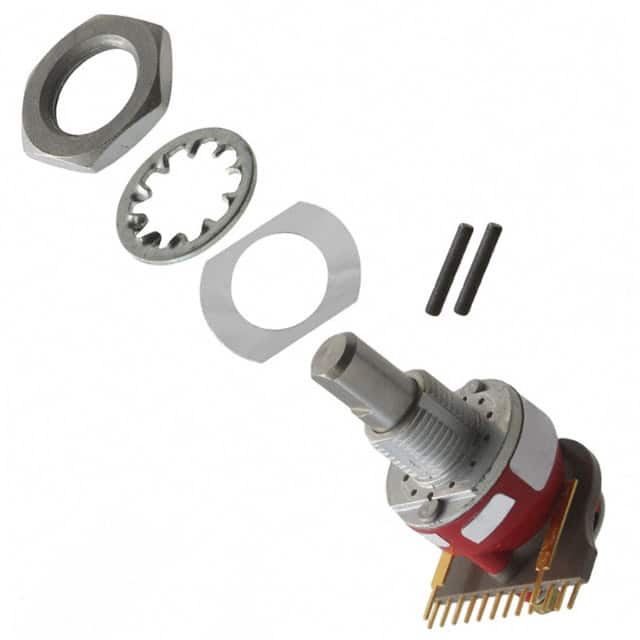

 71BDF30-01-2-AJN Grayhill, Inc. | 1 $27.4300 | Datasheet | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 3,198 Cart + RFQ |

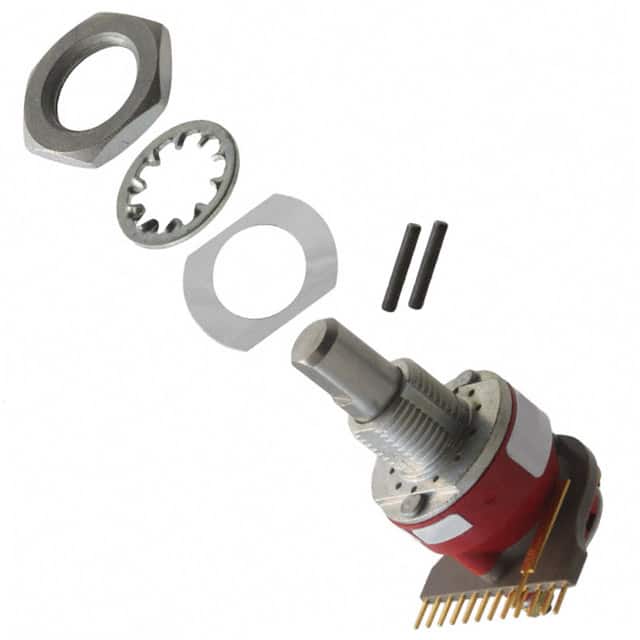

 71BDF30-01-1-AJN Grayhill, Inc. | 1 $28.1400 | Datasheet | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 7,107 Cart + RFQ |

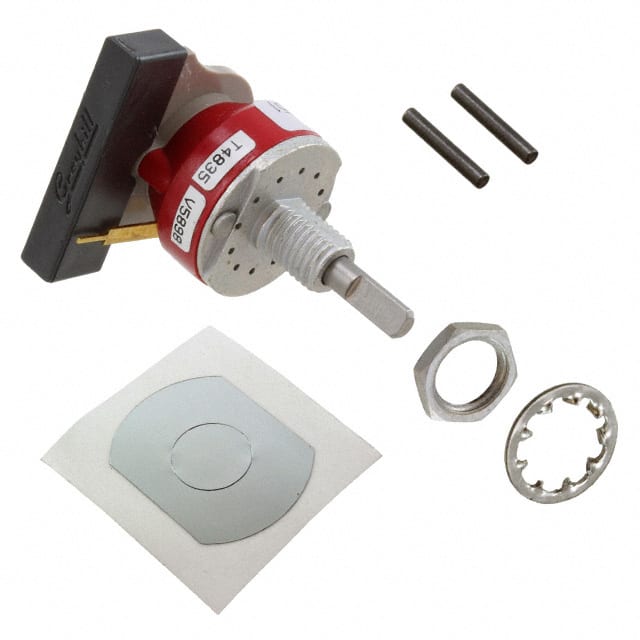

 71ADF30-01-1-AJN Grayhill, Inc. | 1 $28.1400 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 6,939 Cart + RFQ |

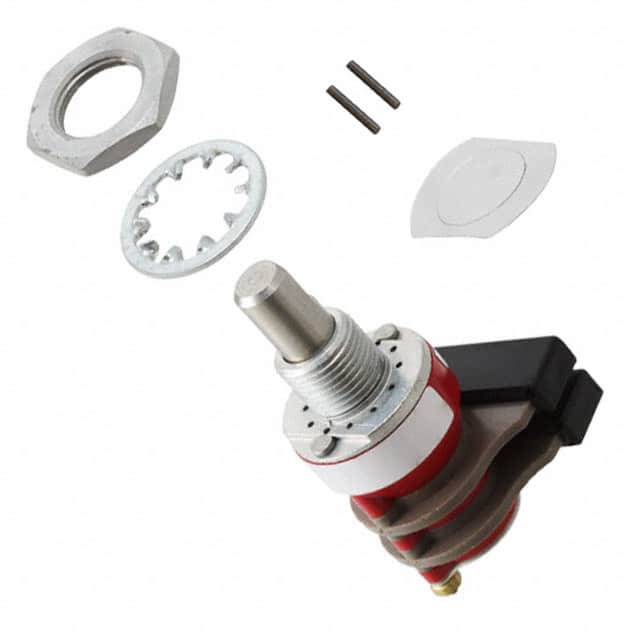

 71BDF30-02-1-AJN Grayhill, Inc. | 1 $36.2600 | Datasheet | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 3,376 Cart + RFQ |

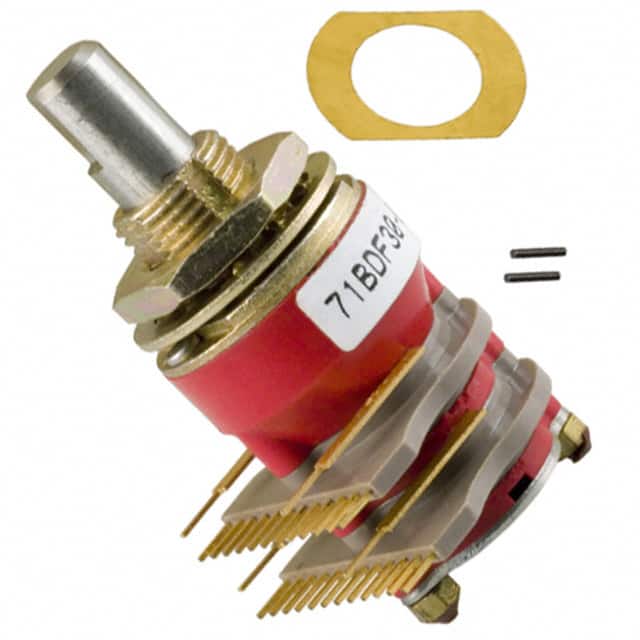

 71BDF30-02-2-AJN Grayhill, Inc. | 1 $38.2000 | Datasheet | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 4,064 Cart + RFQ |

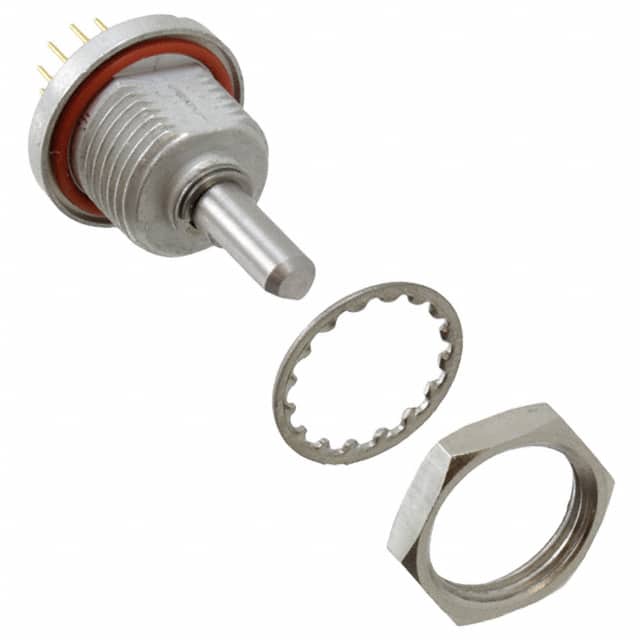

 77SPT36-01-1-10N Grayhill, Inc. | 1 $41.1300 | Datasheet | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 9,193 Cart + RFQ |
77SPT36-01-1-10N-F Grayhill, Inc. | 1 $43.1900 | Datasheet | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 5,774 Cart + RFQ |

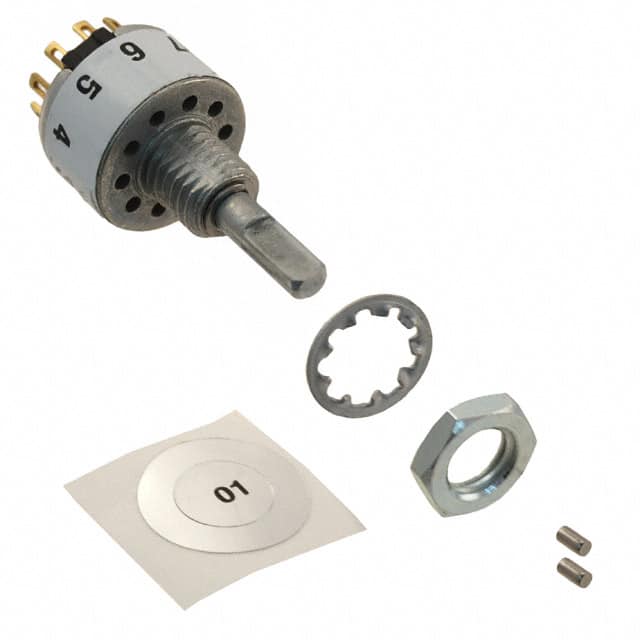

 56D36-01-1-AJN Grayhill, Inc. | 1 $17.0300 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 1,706 Cart + RFQ |
 56D30-01-1-AJN Grayhill, Inc. | 1 $17.8200 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 5,926 Cart + RFQ |
56SD36-01-1-AJS Grayhill, Inc. | 1 $18.9700 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 5,513 Cart + RFQ |

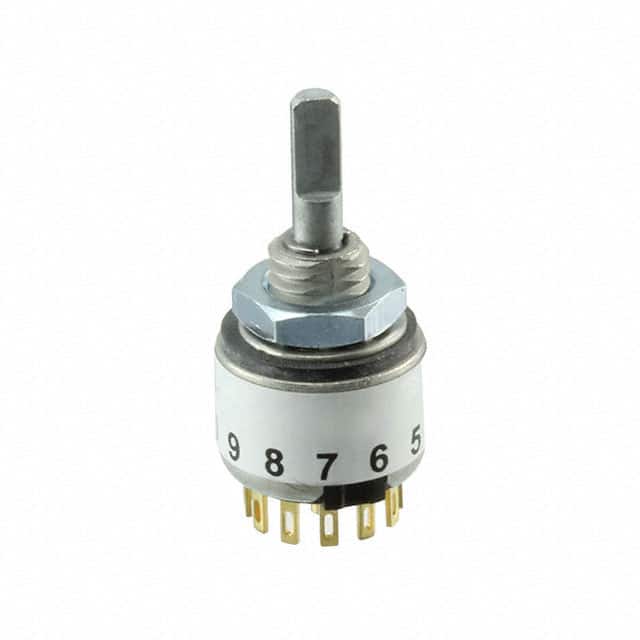

 56SD30-01-1-AJN Grayhill, Inc. | 1 $19.1800 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 8,788 Cart + RFQ |

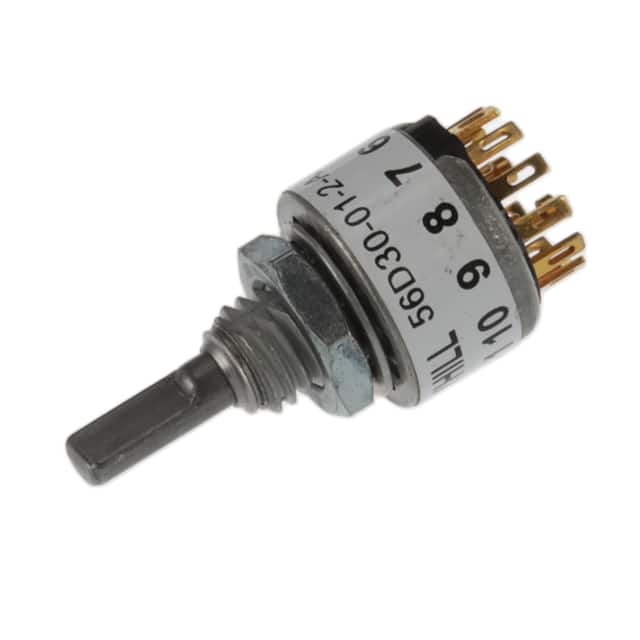

 56D30-01-2-AJN Grayhill, Inc. | 1 $19.6000 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 8,400 Cart + RFQ |
56DP30-01-2-AJN Grayhill, Inc. | 1 $20.0000 | Datasheet | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 5,638 Cart + RFQ |
