Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 72
| Product | Pricing | Datasheet | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

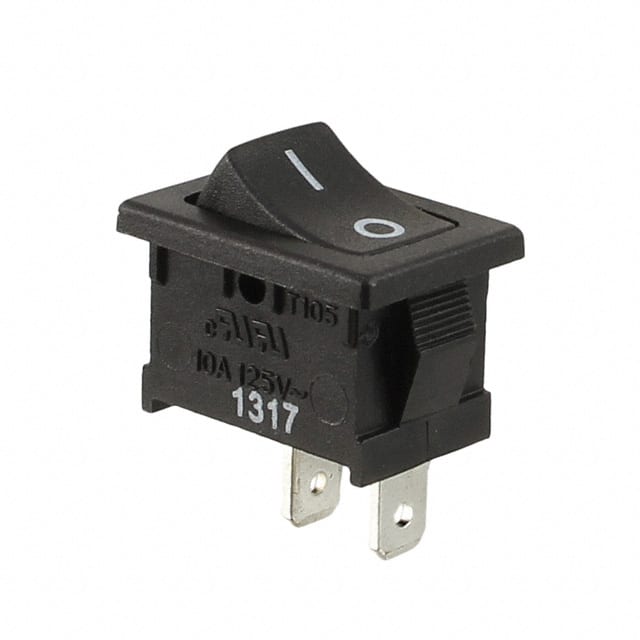

 RA11131121 E-Switch | 1 $0.6700 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | 5,407 Cart + RFQ |

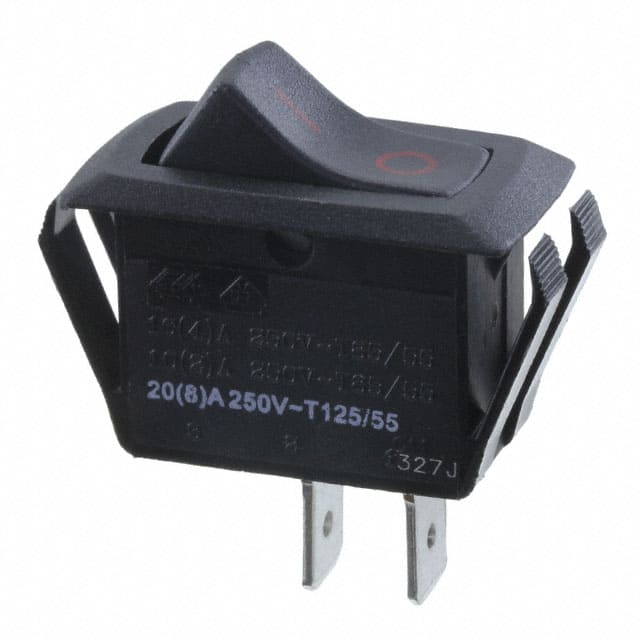

 RSC241D1A81 E-Switch | 1 $1.4300 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | 1,324 Cart + RFQ |

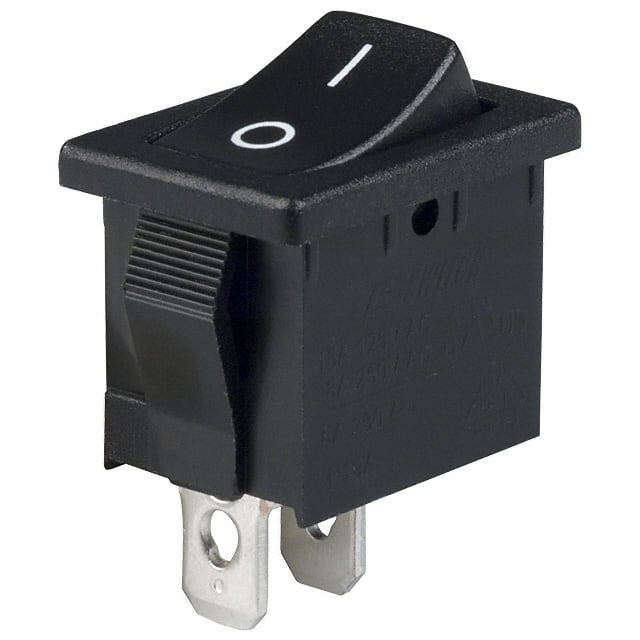

 R1966ABLKBLKFF E-Switch | 1 $1.4500 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | 7,400 Cart + RFQ |

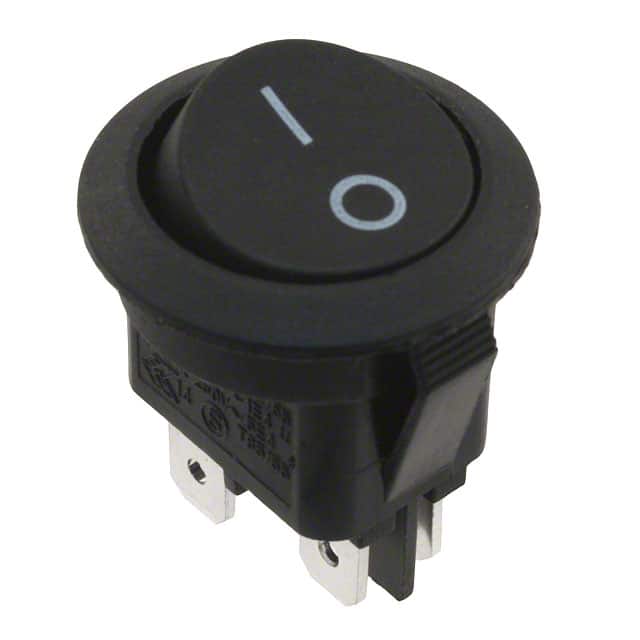

 RR812C1121 E-Switch | 1 $1.4900 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | 5,028 Cart + RFQ |

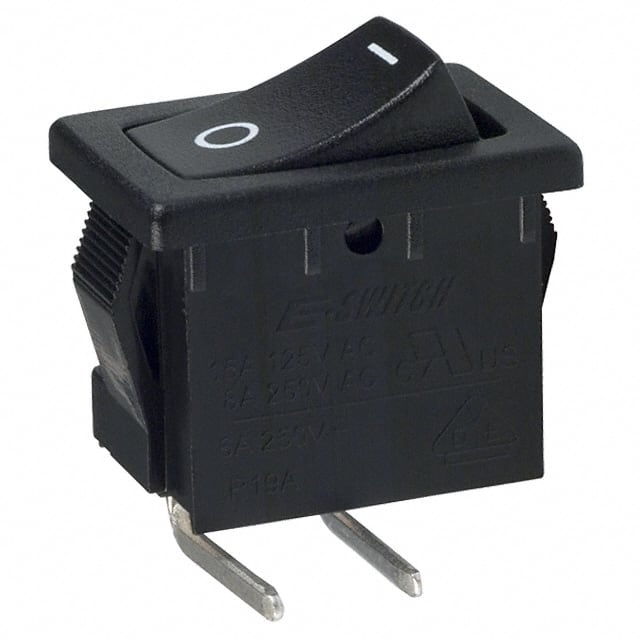

 R1966ABLKBLKGR E-Switch | 1 $1.8800 | Datasheet | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | 1,939 Cart + RFQ |

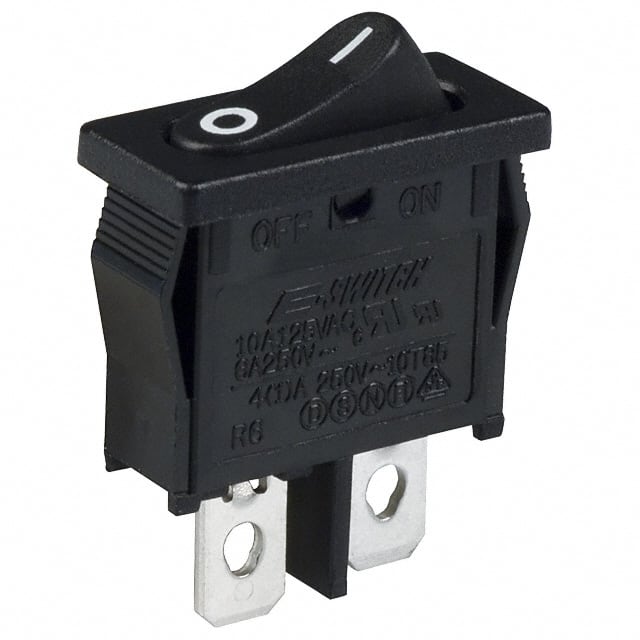

 R6ABLKBLKFF E-Switch | 1 $1.9600 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.65mm | -20°C ~ 65°C | 2,611 Cart + RFQ |

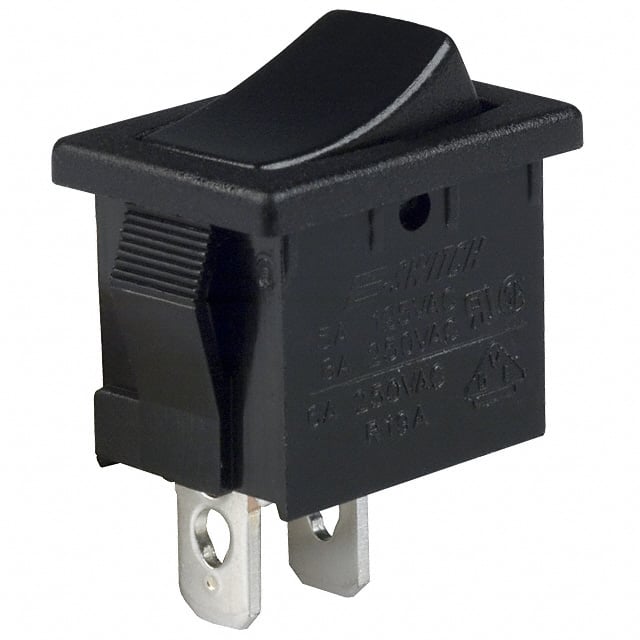

 R1966FBLKBLKEF E-Switch | 1 $2.0500 | Datasheet | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | 6,240 Cart + RFQ |

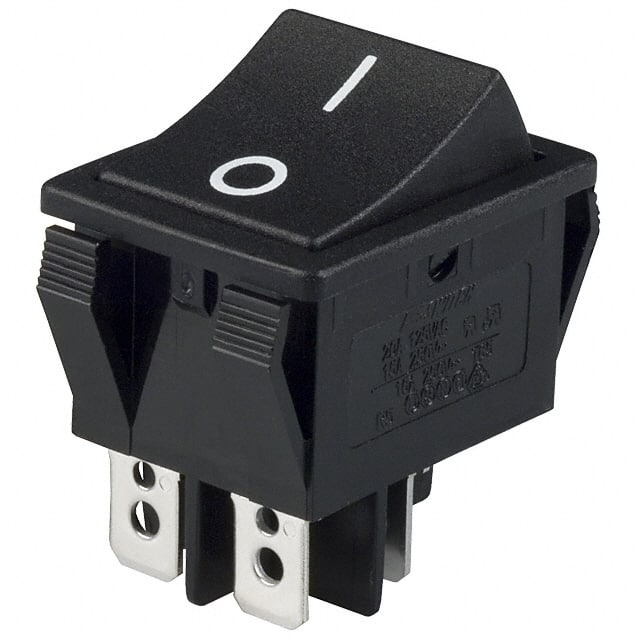

 R5ABLKBLKFF0 E-Switch | 1 $2.1300 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | 4,368 Cart + RFQ |

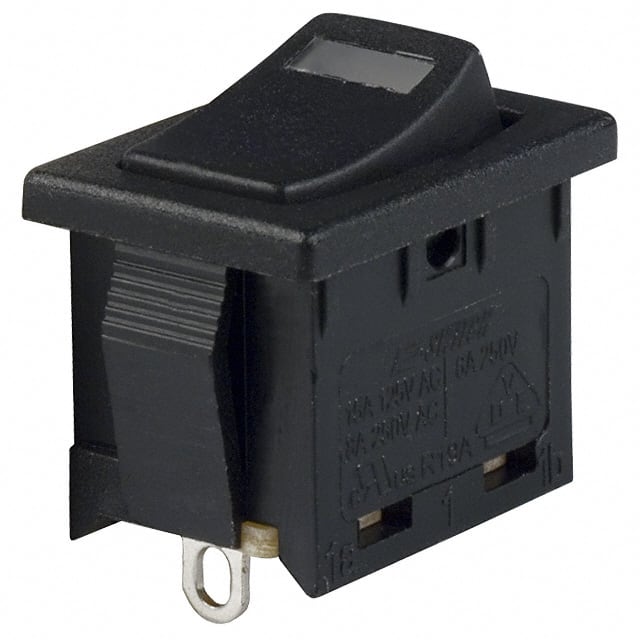

 R1966ABLKBLKESRED E-Switch | 1 $2.3300 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2 VDC | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | 2,118 Cart + RFQ |
R1966ABLKBLKESGRN E-Switch | 1 $2.3300 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | 5,489 Cart + RFQ |

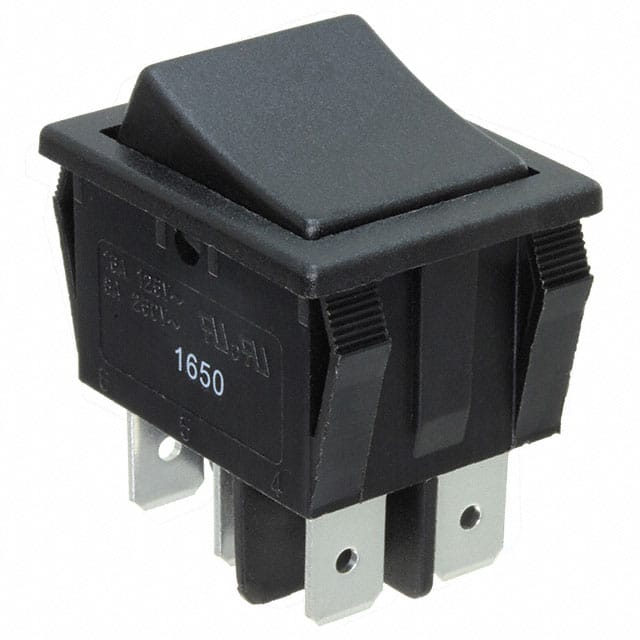

 RB246C1100 E-Switch | 1 $2.3400 | Datasheet | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | 2,092 Cart + RFQ |

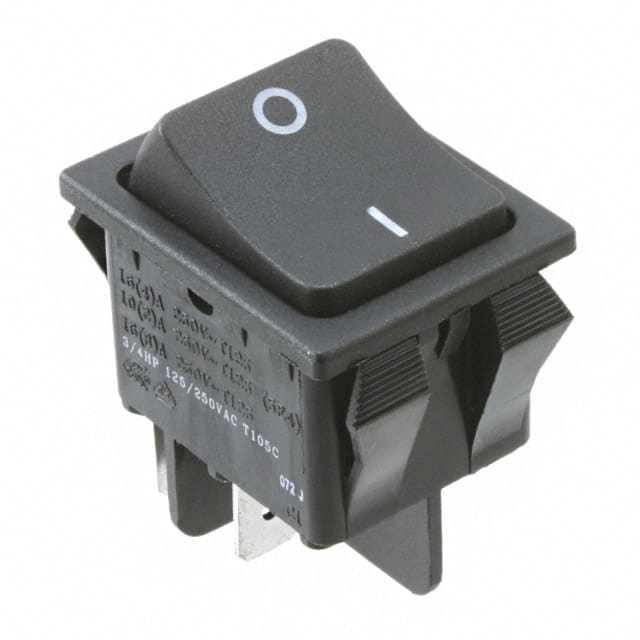

 RB242D1121 E-Switch | 1 $2.4800 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | 1,991 Cart + RFQ |

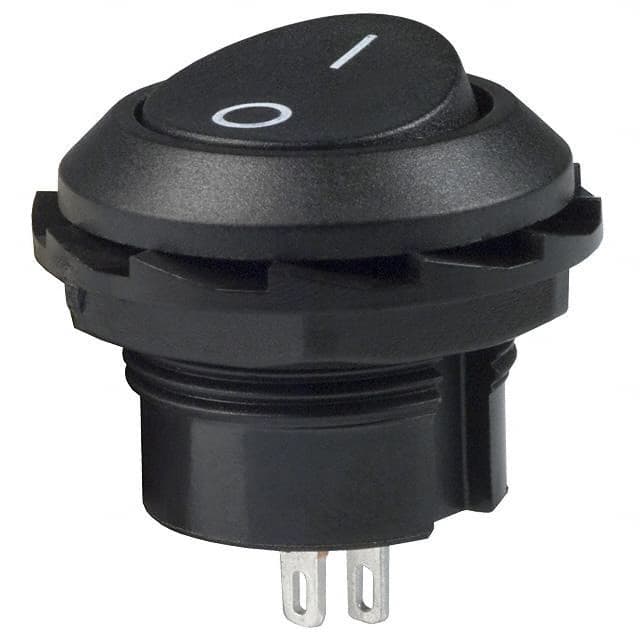

 RR3130ABLKBLKFS E-Switch | 1 $3.1200 | Datasheet | Panel Mount, Threaded Body with Nut | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | 2,681 Cart + RFQ |

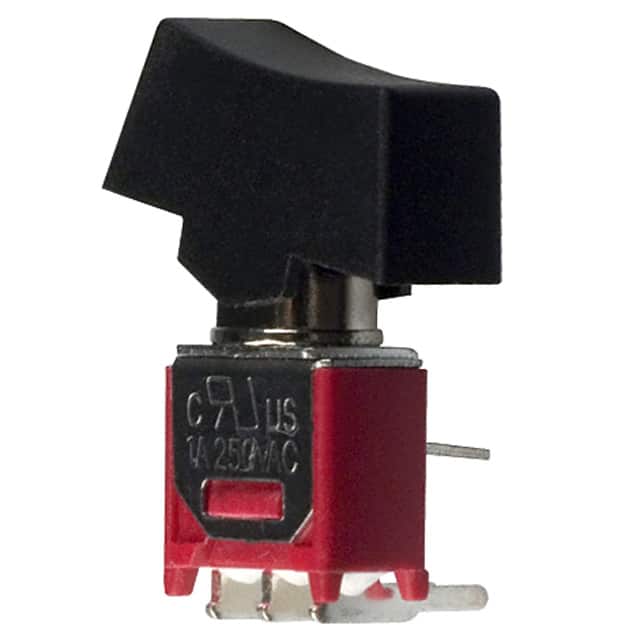

 400MSP1R6BLKM6QE E-Switch | 1 $3.7300 | Datasheet | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | 5,300 Cart + RFQ |

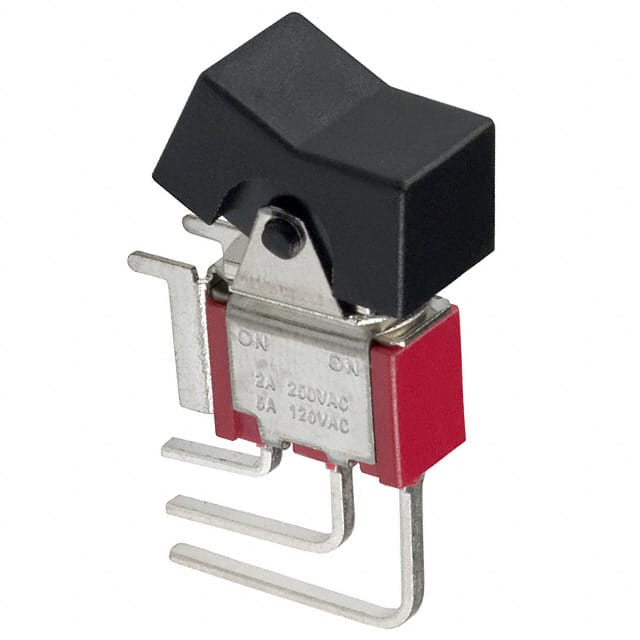

 300SP1J1BLKM7QE E-Switch | 1 $3.9800 | Datasheet | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | 1,143 Cart + RFQ |

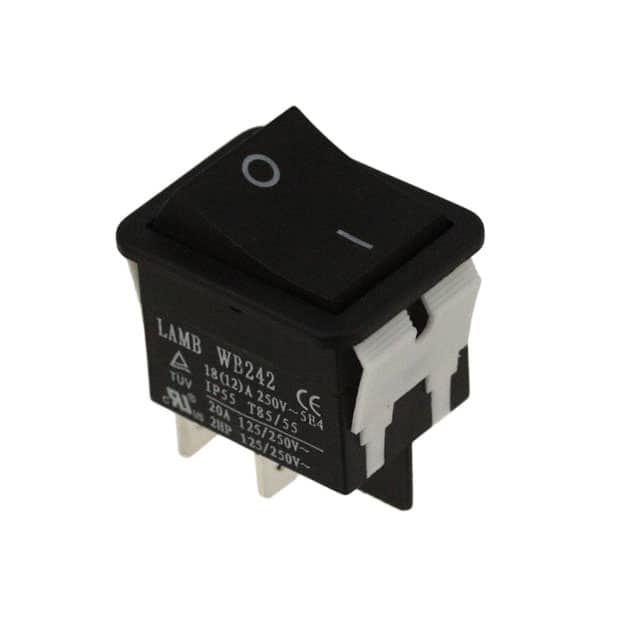

 WB242D1121 E-Switch | 1 $5.5700 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | 6,816 Cart + RFQ |

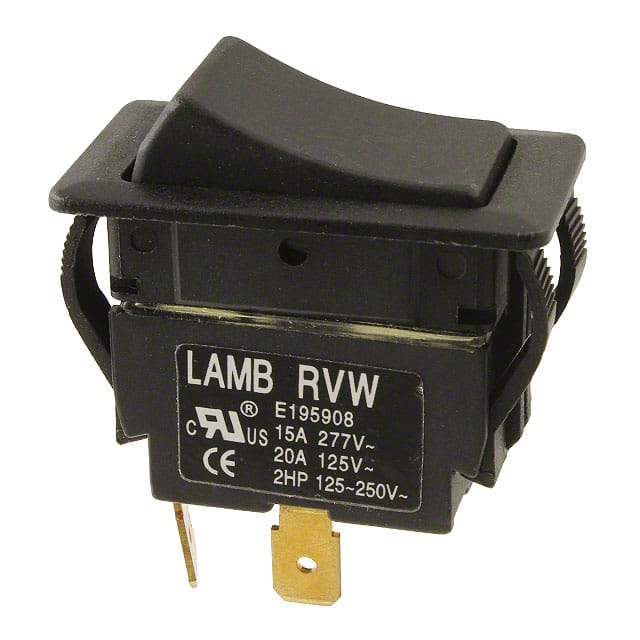

 RVW41D1100 E-Switch | 1 $6.2200 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | 2,650 Cart + RFQ |

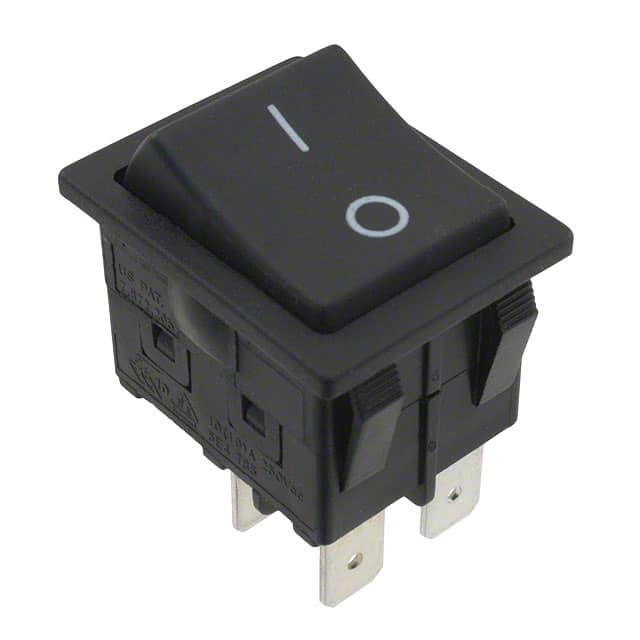

 RBW2ABLKBLKFF0 E-Switch | 1 $7.4800 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | 4,074 Cart + RFQ |

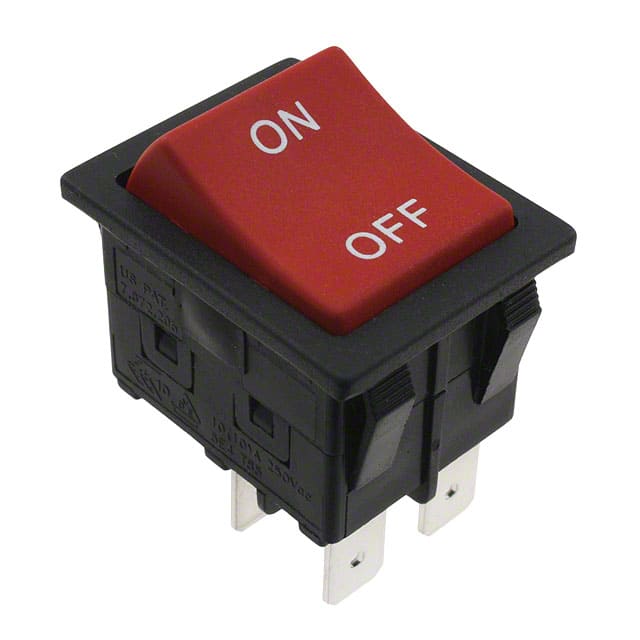

 RBW2ABLKREDIF0 E-Switch | 1 $7.4800 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | 7,954 Cart + RFQ |

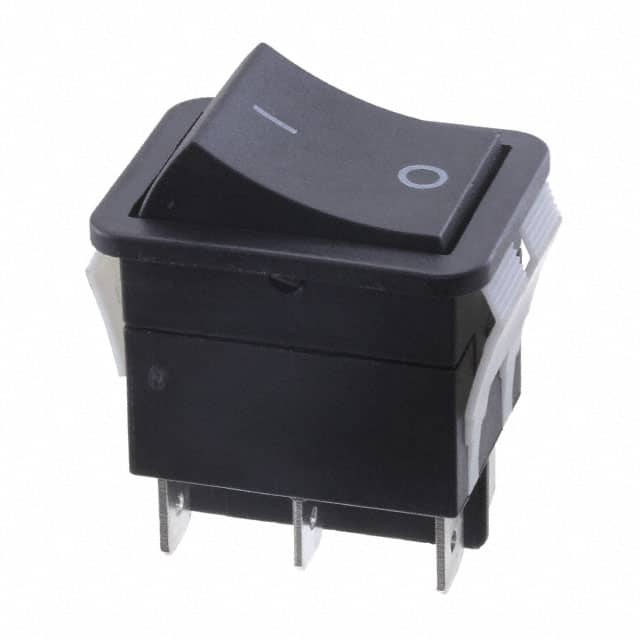

 WB24GE1121 E-Switch | 1 $7.8400 | Datasheet | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | 8,766 Cart + RFQ |
