Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 16
| Product | Pricing | Datasheet | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

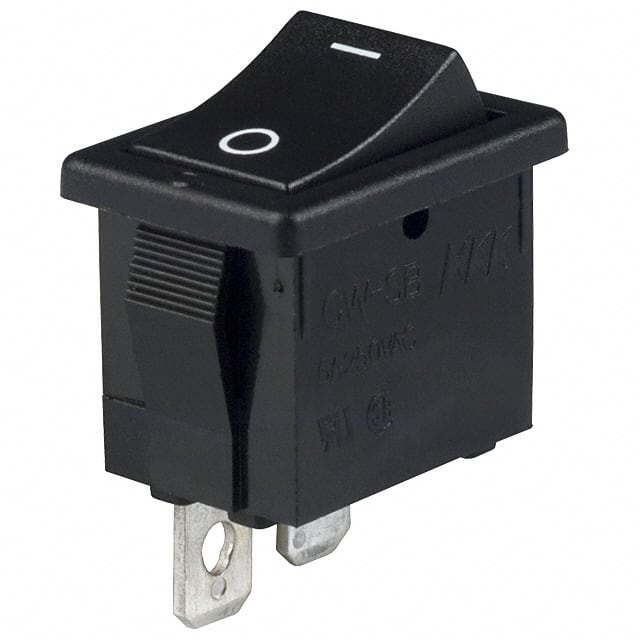

 CWSB11AA1F NKK Switches | 1 $3.2700 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | 6,432 Cart + RFQ |

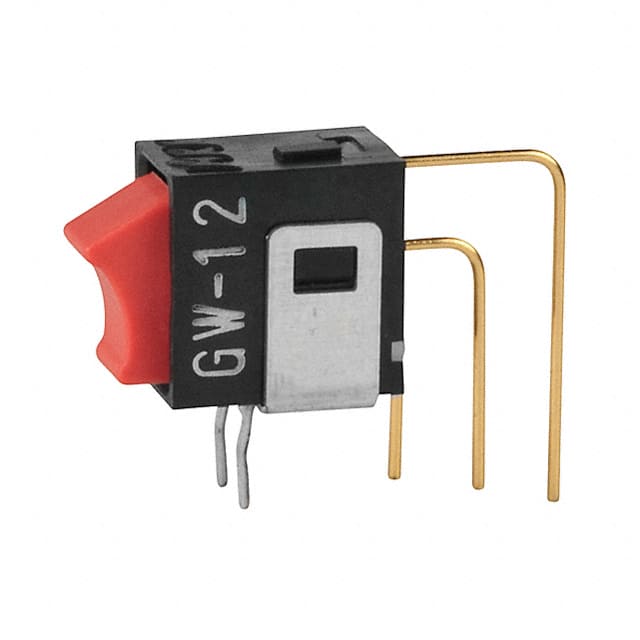

 GW12RCV NKK Switches | 1 $3.6800 | Datasheet | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | 5,119 Cart + RFQ |

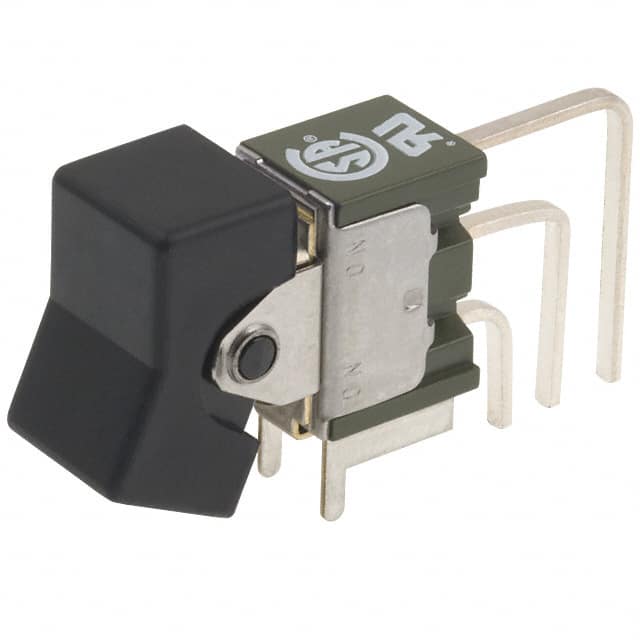

 M2012TXW41-DA NKK Switches | 1 $6.4600 | Datasheet | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | 9,805 Cart + RFQ |

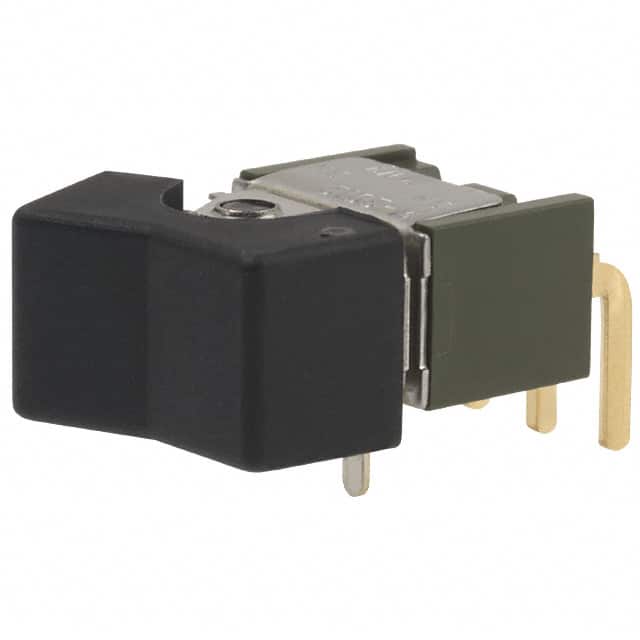

 M2012TXG30-DA NKK Switches | 1 $7.5900 | Datasheet | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | 8,549 Cart + RFQ |

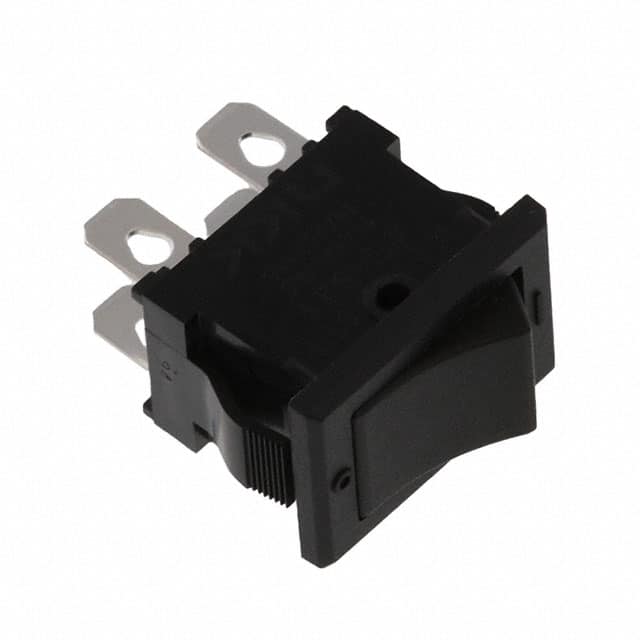

 JWS21RAA NKK Switches | 1 $7.7800 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | 8,882 Cart + RFQ |

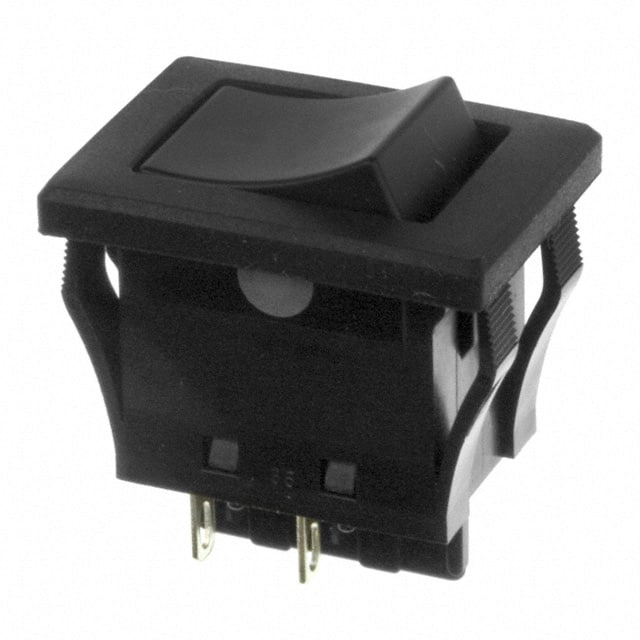

 JWMW11RAA NKK Switches | 1 $8.1800 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | 7,182 Cart + RFQ |

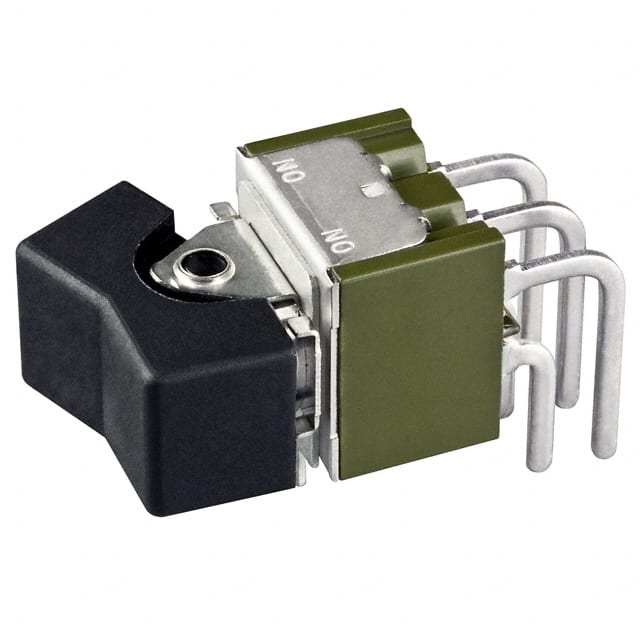

 M2022TXW30-DA NKK Switches | 1 $9.1200 | Datasheet | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | 2,532 Cart + RFQ |

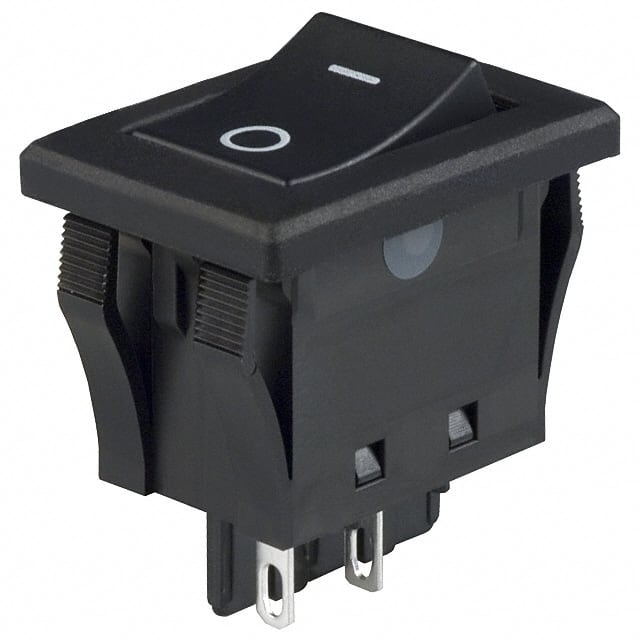

 JWMW11RA1A NKK Switches | 1 $9.2700 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | 3,813 Cart + RFQ |

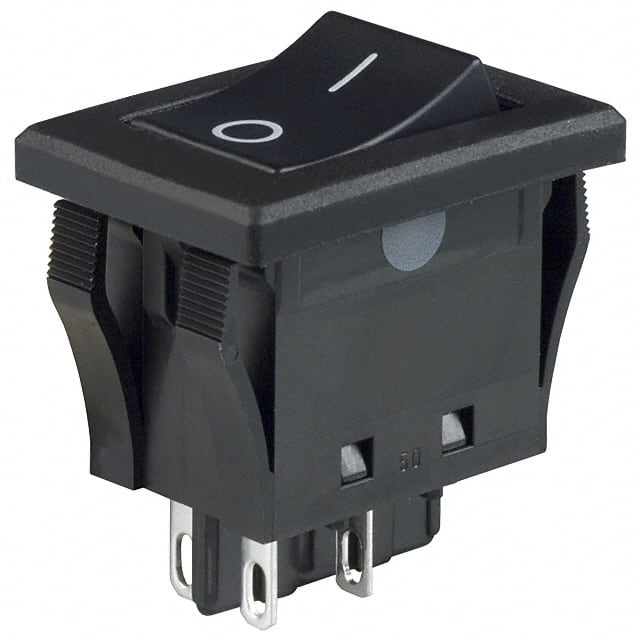

 JWMW21RA2A NKK Switches | 1 $11.4100 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | 3,916 Cart + RFQ |

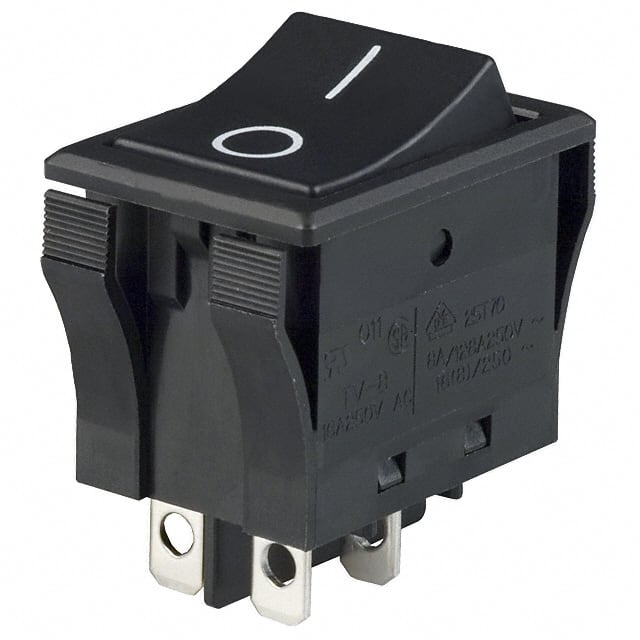

 JWL21RA2A NKK Switches | 1 $13.0700 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | 5,168 Cart + RFQ |

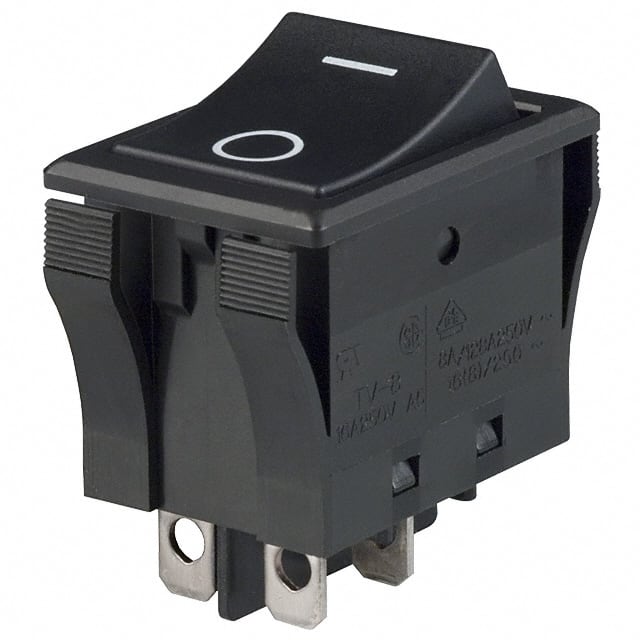

 JWL21RA1A NKK Switches | 1 $13.0700 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | 4,092 Cart + RFQ |

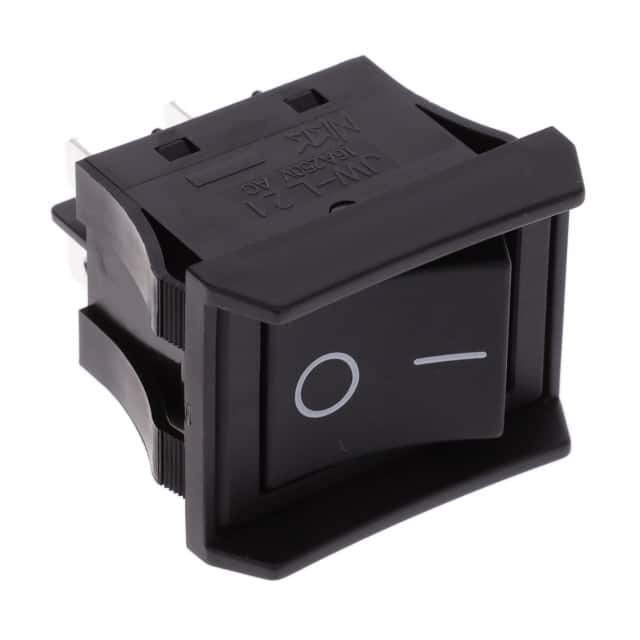

 JWL21BA2A-A NKK Switches | 1 $14.3200 | Datasheet | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | 3,956 Cart + RFQ |

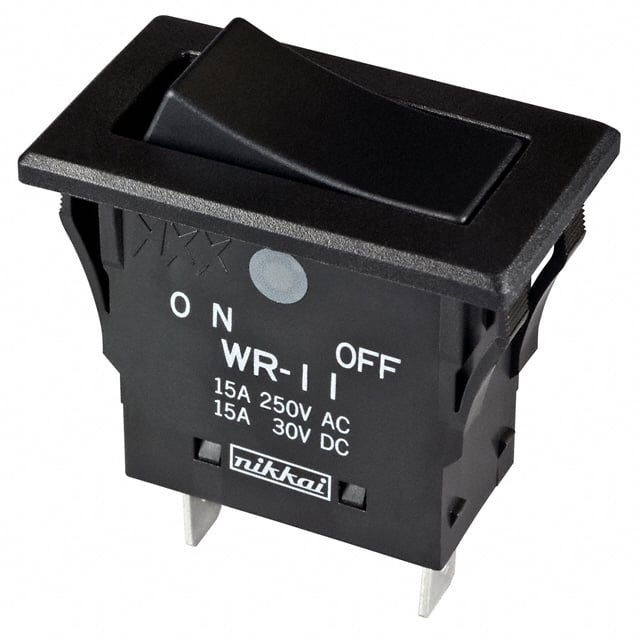

 WR11AF NKK Switches | 1 $14.3500 | Datasheet | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | 6,504 Cart + RFQ |

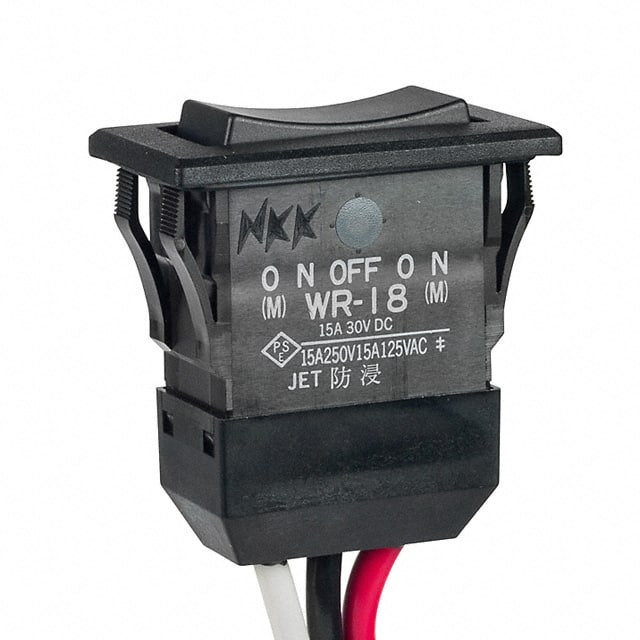

 WR18AL NKK Switches | 1 $30.6400 | Datasheet | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | 1,654 Cart + RFQ |

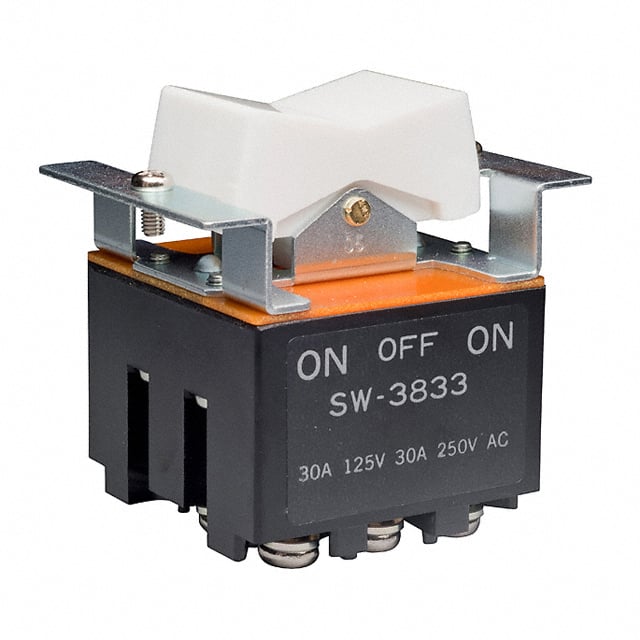

 SW3833 NKK Switches | 1 $47.8200 | Datasheet | Panel Mount, Flange | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | 5,757 Cart + RFQ |

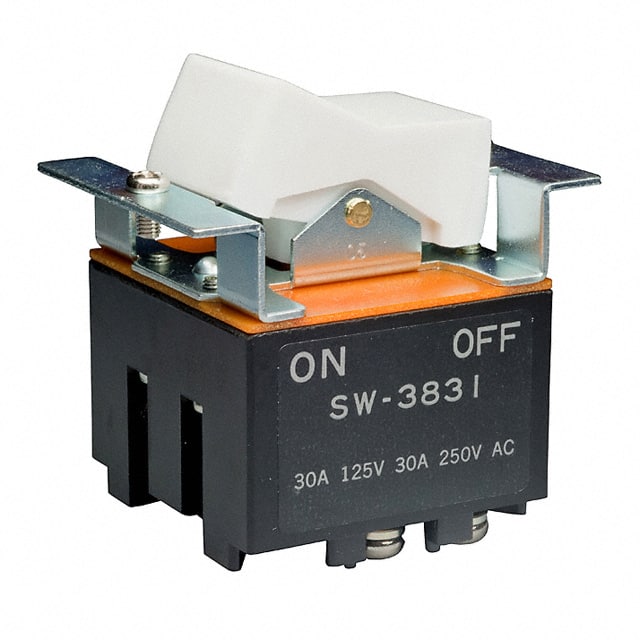

 SW3831 NKK Switches | 1 $39.4200 | Datasheet | Panel Mount, Flange | 3PST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | 4,822 Cart + RFQ |
