Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PMC-1001THY PIC GmbH | 1 $3.3700 | Datasheet | Molded Body Reed | SPST-NC | 10 ~ 50AT | 5AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.772" (19.60mm) | 0.575" L x 0.118" W x 0.138" H (14.60mm x 3.00mm x 3.50mm) | - | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) | 1,346 Cart + RFQ |

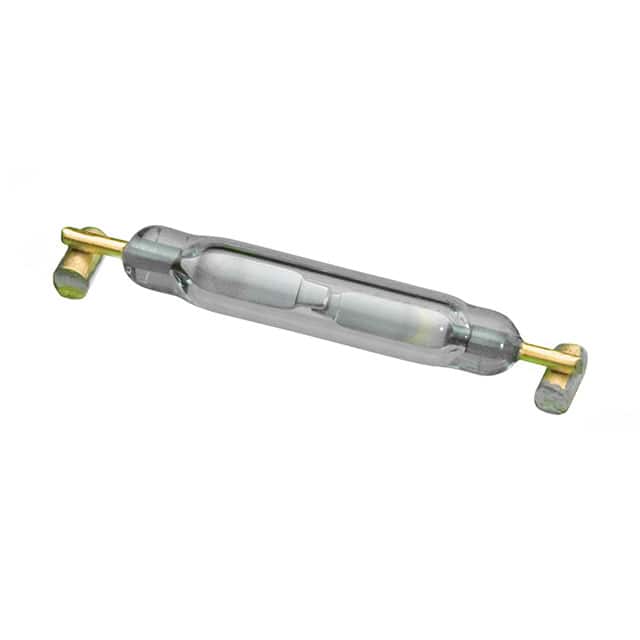

 PMC-1001TS1015 PIC GmbH | 1 $1.2500 | Datasheet | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) | 3,658 Cart + RFQ |

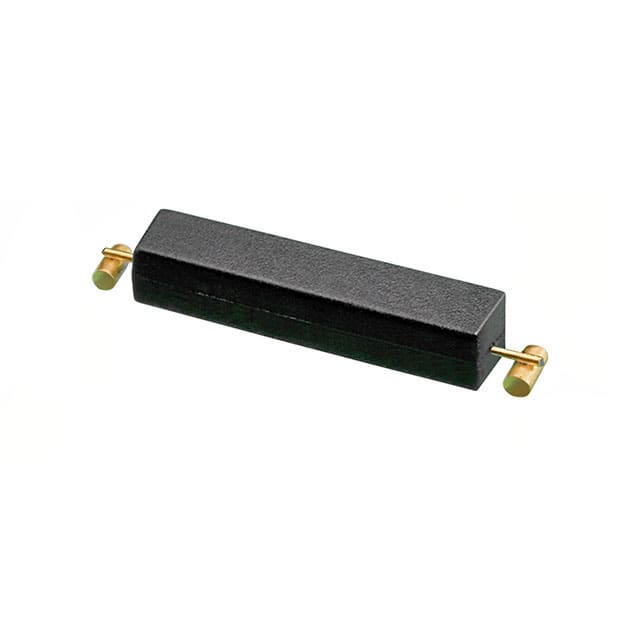

 PMC-1001THL2025 PIC GmbH | 1 $1.5600 | Datasheet | Molded Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.610" L x 0.114" W x 0.110" H (15.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) | 1,206 Cart + RFQ |

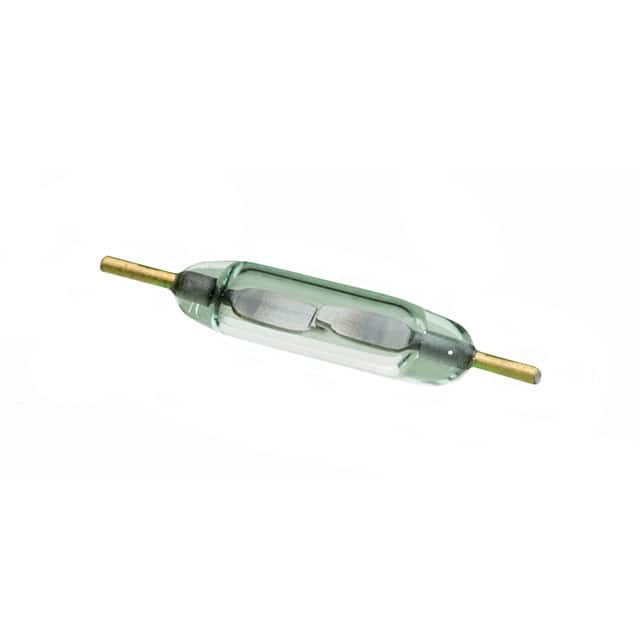

 PMC-0701S1015 PIC GmbH | 1 $1.6900 | Datasheet | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.394" (10.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) | 2,685 Cart + RFQ |
 PMC-1401SX PIC GmbH | 1 $7.0700 | Datasheet | Glass Body Reed | SPST-NO, Latching | - | - | 500mA (AC/DC) | 100 V | 140 V | 5W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.138" Dia x 0.559" L (3.50mm x 14.20mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) | 9,190 Cart + RFQ |

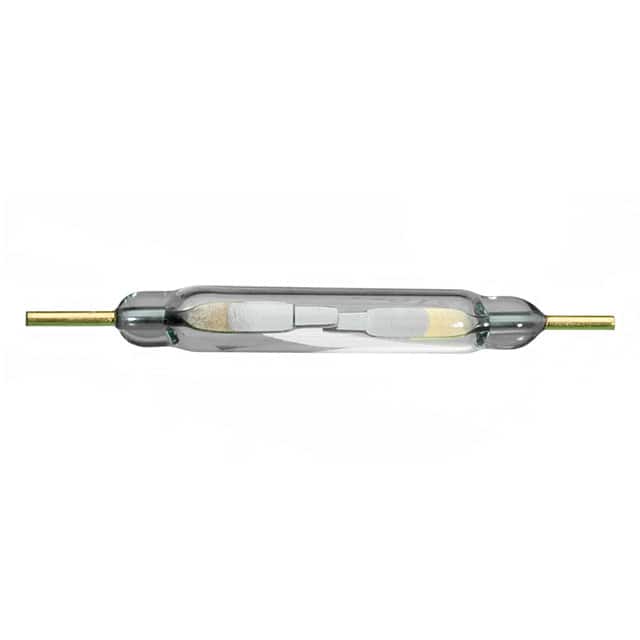

 PMC-1401S1520 PIC GmbH | 1 $0.8400 | Datasheet | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) | 5,380 Cart + RFQ |
PMC-1401S1015 PIC GmbH | 1 $0.8400 | Datasheet | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) | 3,827 Cart + RFQ |

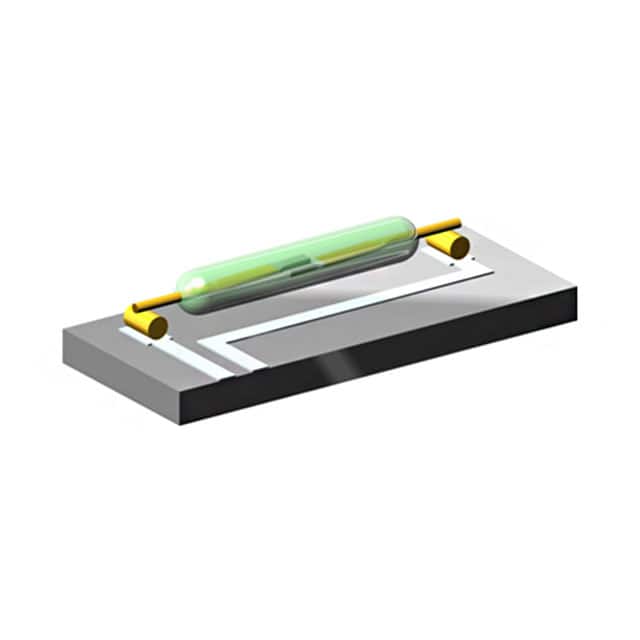

 PMC-1401T1015 PIC GmbH | 1 $1.0500 | Datasheet | Glass Body Reed | SPST-NO | 10 ~ 15AT | 5 ~ 20AT | 1A (AC/DC) | 140 V | 200 V | 10W | 0.4 ms | 0.5 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | 0.5 pF | 1.2A (AC/DC) | 1,995 Cart + RFQ |

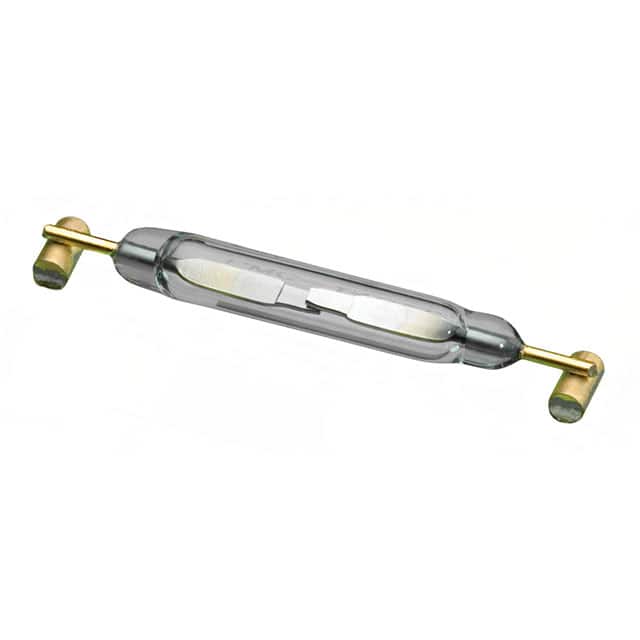

 PMC-1401TS1520 PIC GmbH | 1 $1.0500 | Datasheet | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) | 6,496 Cart + RFQ |
