Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 14
| Product | Pricing | Datasheet | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

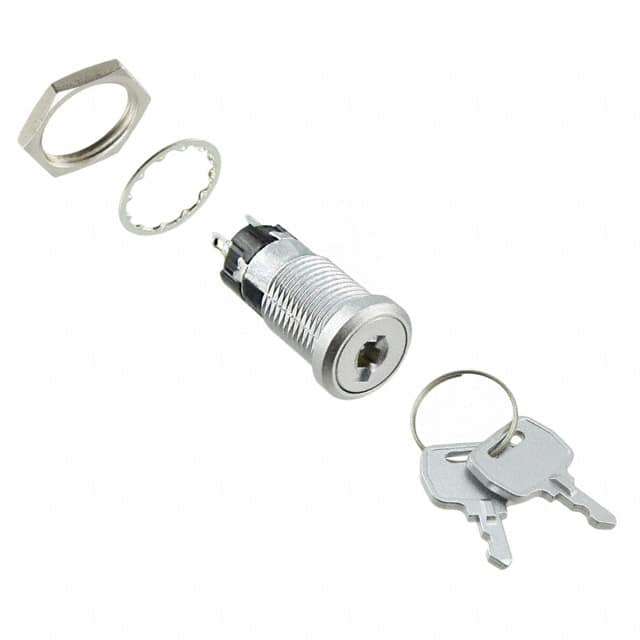

 SK12AAW01 NKK Switches | 1 $16.4100 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 1,890 Cart + RFQ |

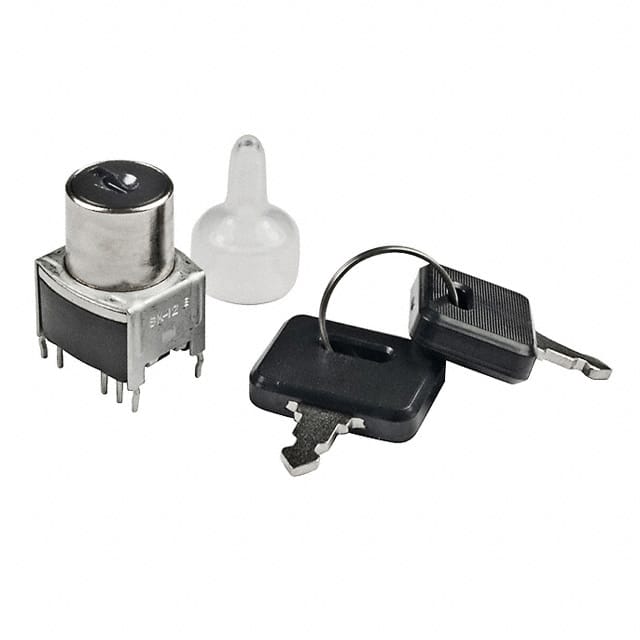

 SK12BG13 NKK Switches | 1 $16.8300 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C | 5,586 Cart + RFQ |

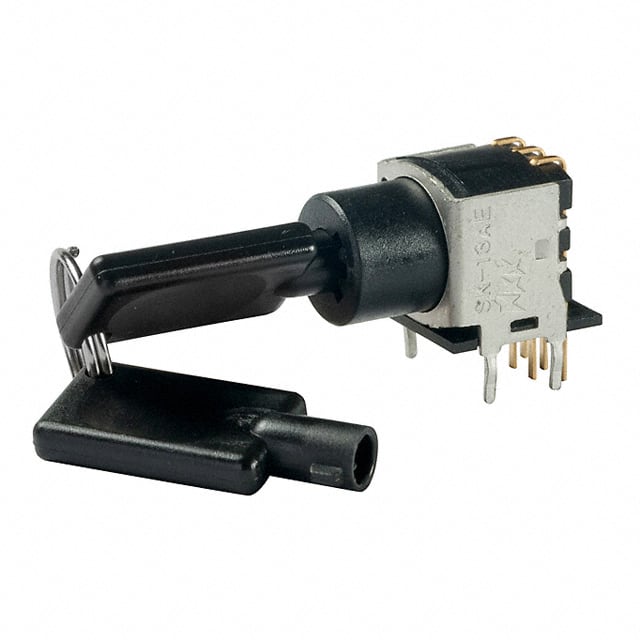

 SK13AEG30 NKK Switches | 1 $17.1500 | Datasheet | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Tin | Through Hole | PC Pin | - | Antistatic, Process Sealed | -25°C ~ 70°C | 3,259 Cart + RFQ |

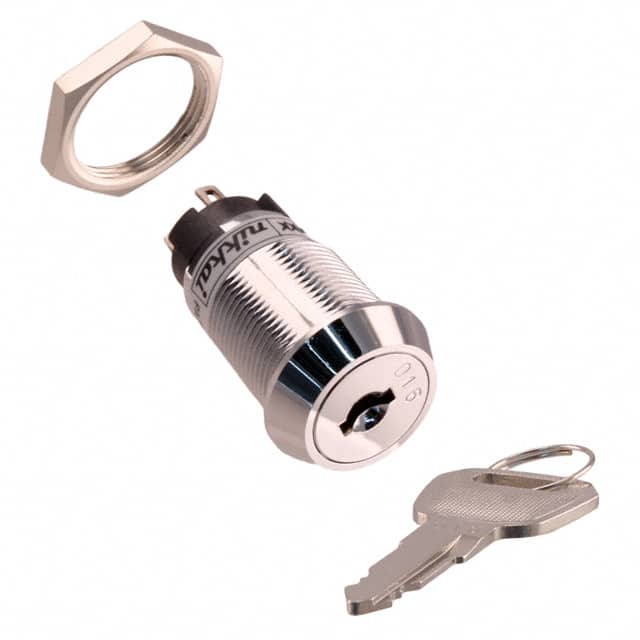

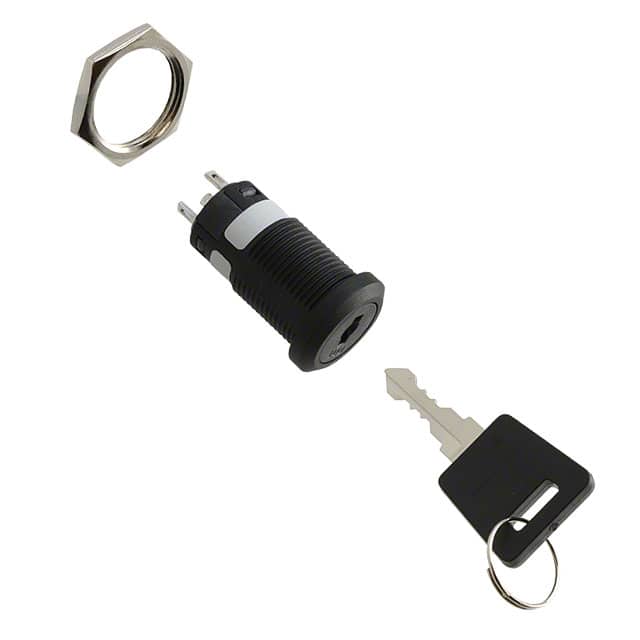

 CKM12BFW01-001 NKK Switches | 1 $17.1500 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 7,538 Cart + RFQ |

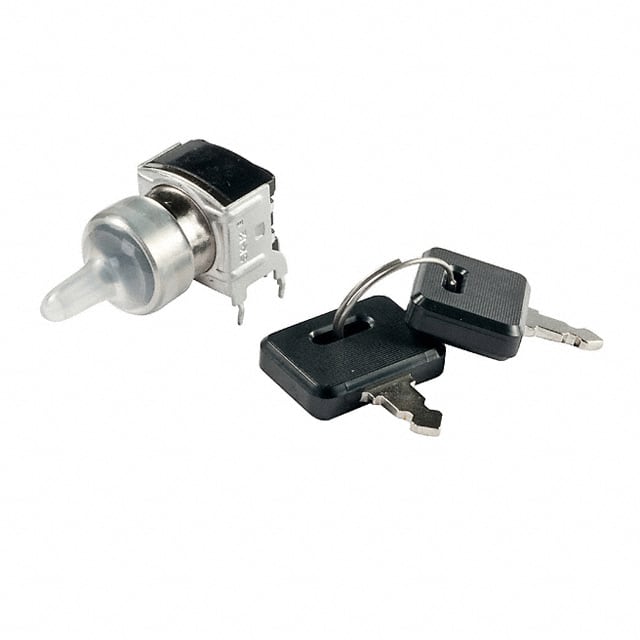

 SK12BG30 NKK Switches | 1 $17.3100 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C | 8,912 Cart + RFQ |

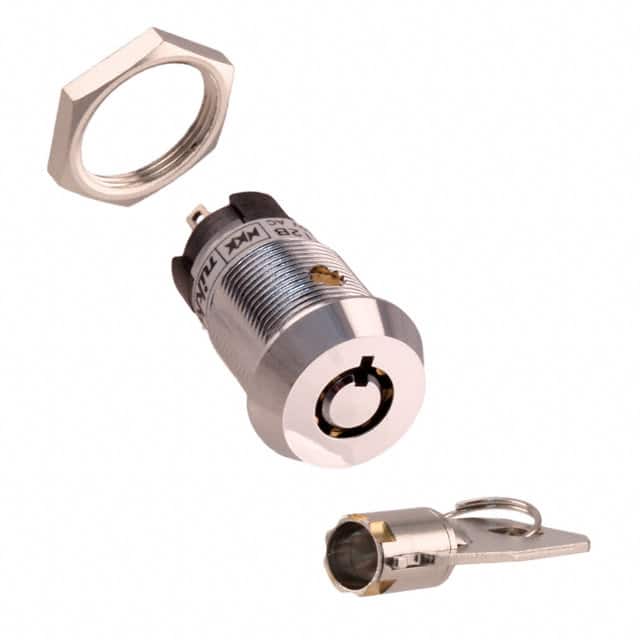

 CKL12ATW01-001 NKK Switches | 1 $17.4200 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 2,947 Cart + RFQ |
 CKL12BFW01-001 NKK Switches | 1 $17.4200 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 4,998 Cart + RFQ |

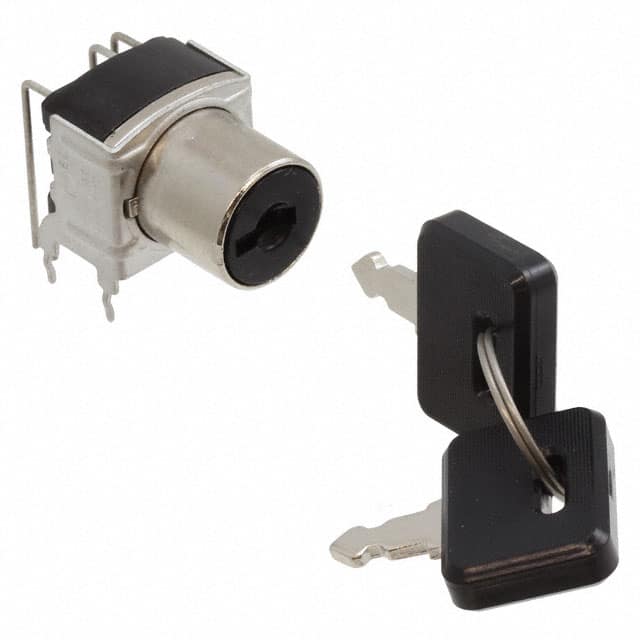

 SK22BG30 NKK Switches | 1 $19.1300 | Datasheet | DPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C | 6,153 Cart + RFQ |
CKL12BFW01 NKK Switches | 1 $17.4200 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 4,701 Cart + RFQ |

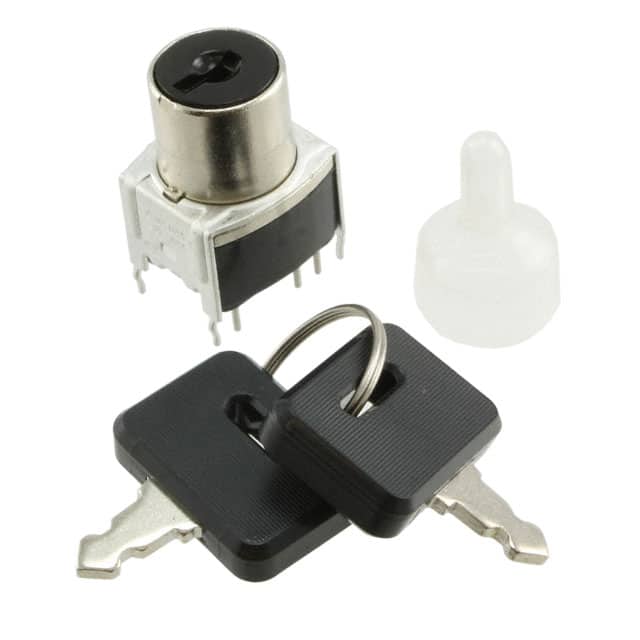

 SK12AG13 NKK Switches | 1 $16.8300 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C | 9,272 Cart + RFQ |

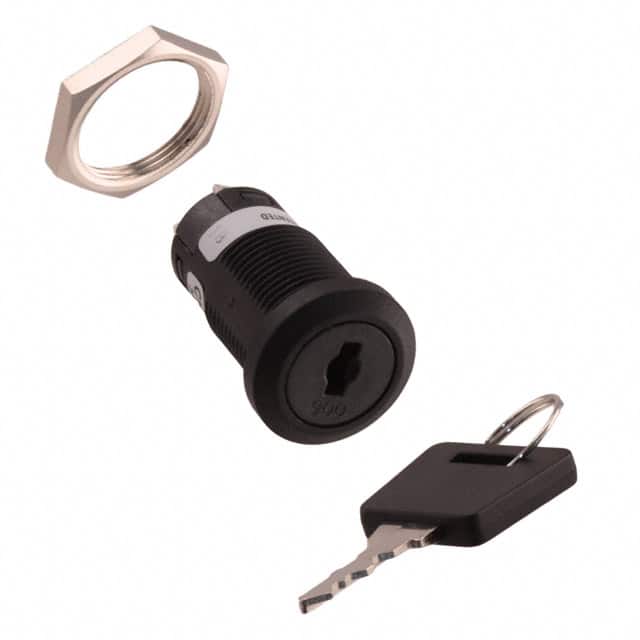

 CKM12AFW01 NKK Switches | 1 $17.1500 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 6,089 Cart + RFQ |

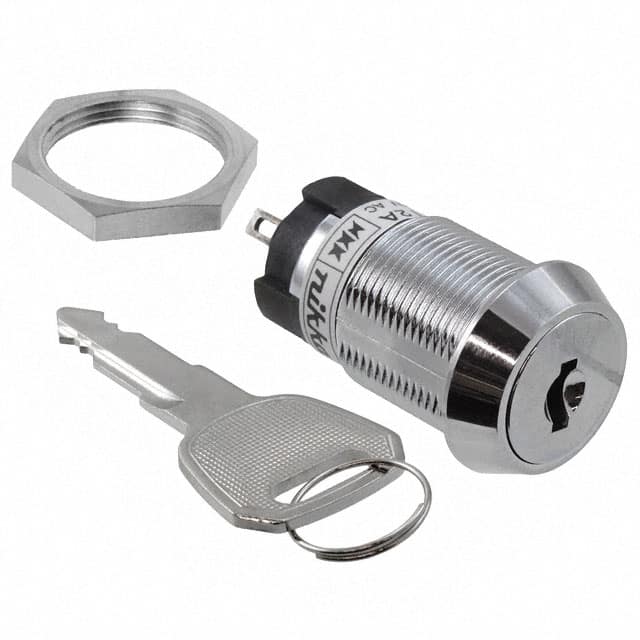

 CKL12AFW01-016 NKK Switches | 1 $17.4200 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 5,237 Cart + RFQ |
CKL12ATW01-040 NKK Switches | 1 $17.4200 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 3,285 Cart + RFQ |
CKL12BTW01-001 NKK Switches | 1 $17.4200 | Datasheet | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C | 8,715 Cart + RFQ |
